Original Ultra-Fast Recovery Diode MUR3040PT 400V 30A MUR3060PT MUR3020PT 400V 20A High Voltage Rectifier Diodes for Power Circuits
Product Overview
The MUR3040PT, MUR3060PT, and MUR3020PT Ultra-Fast Recovery Diodes are high-efficiency rectifiers engineered for power circuits requiring rapid switching and minimal energy loss. With a 400V reverse voltage rating and current capacities up to 30A, these diodes deliver robust performance in demanding applications such as switch-mode power supplies, inverters, and motor drives.
Key Features:
Ultra-Fast Recovery Time: Trr ≤ 50ns (typical) ensures reduced switching losses and improved system efficiency.
High Voltage & Current Ratings:

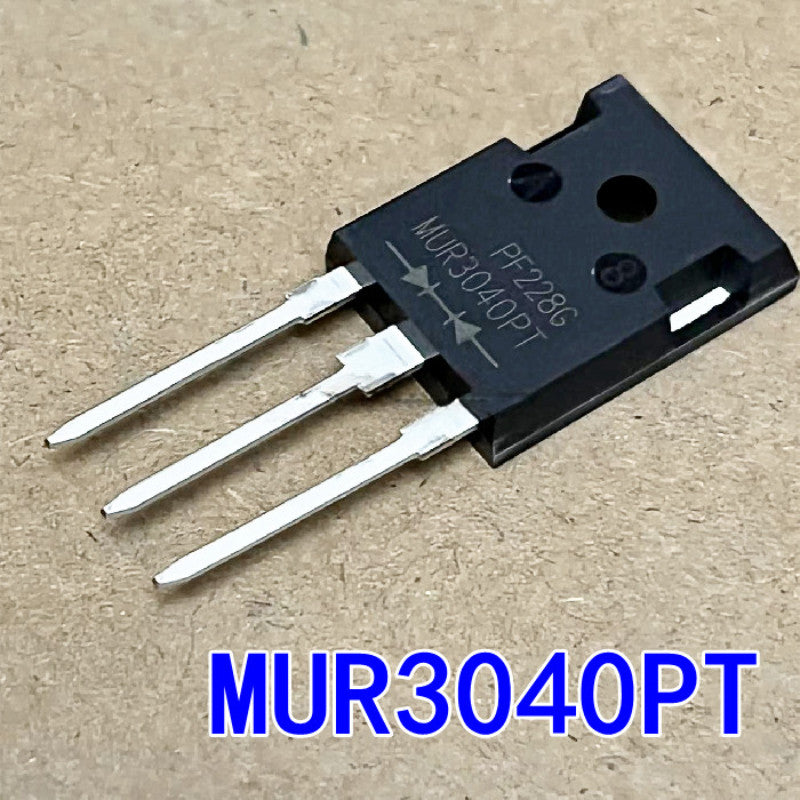

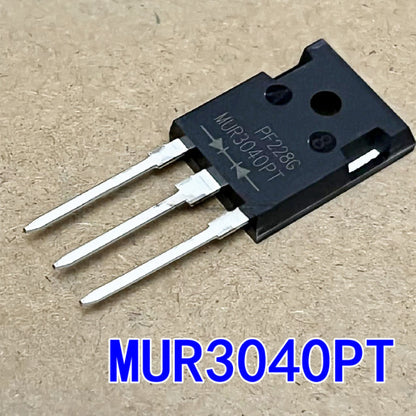

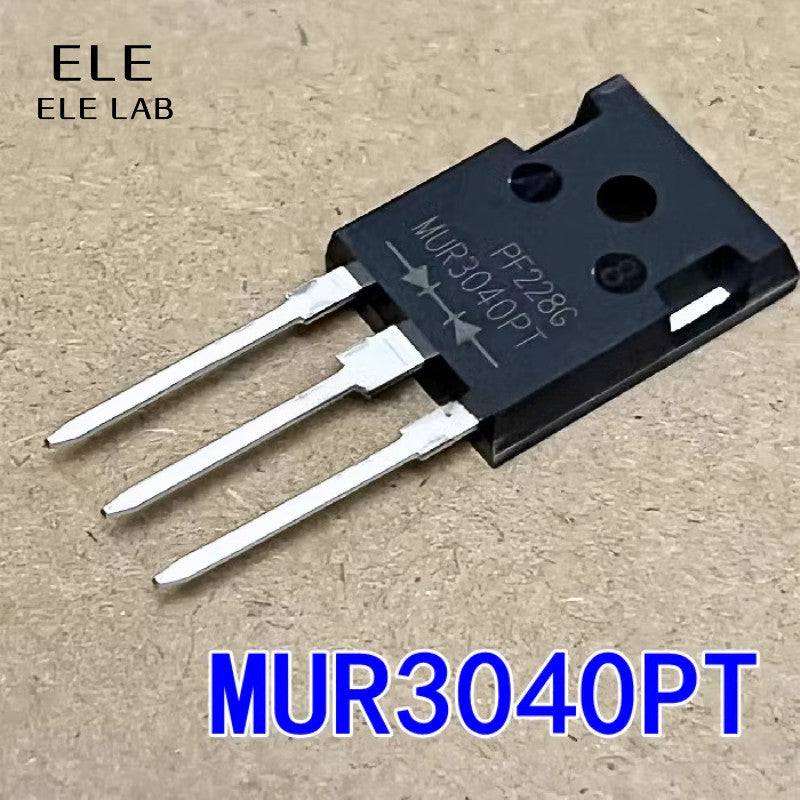

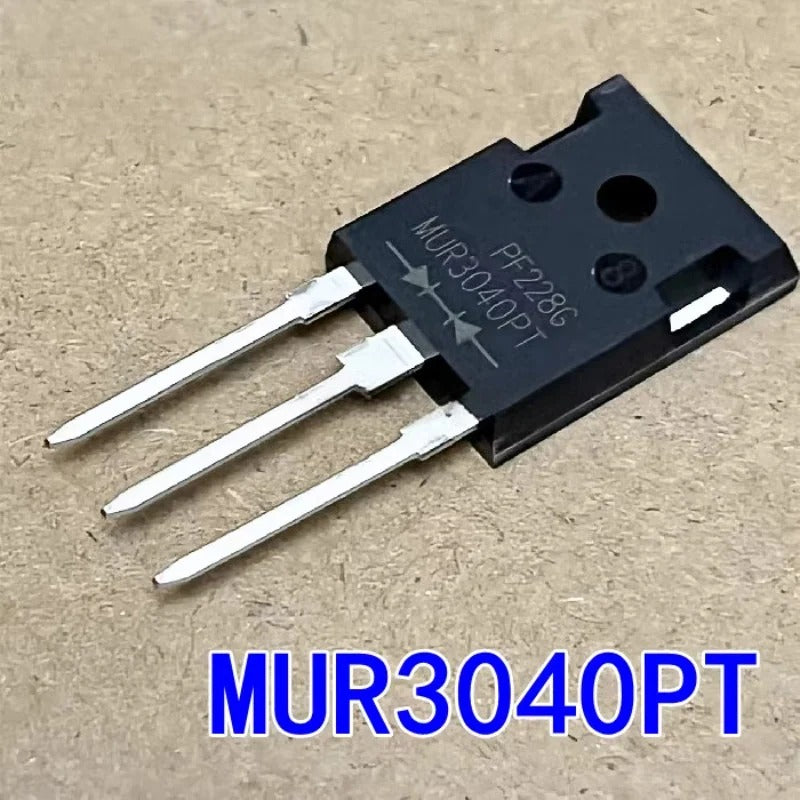

MUR3040PT: 400V, 30A (avg), 300A surge current.

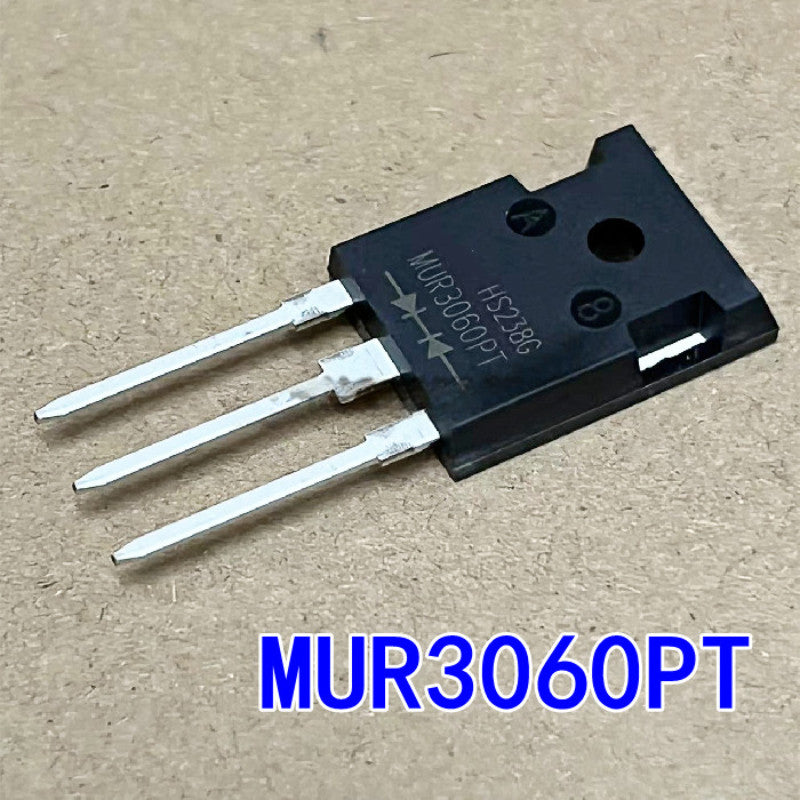

MUR3060PT: 600V, 30A (avg), 300A surge current.

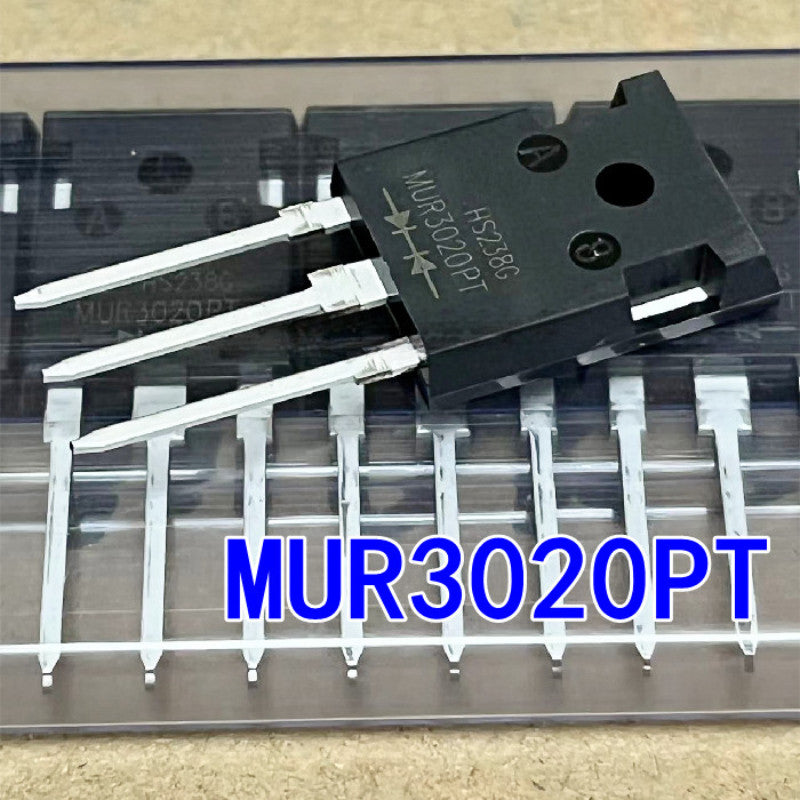

MUR3020PT: 400V, 20A (avg), 200A surge current.
Applications:
Switch-mode power supplies (SMPS) and DC-DC converters
Inverters, UPS systems, and motor drive circuits
Snubber networks and freewheeling diodes in inductive loads
Industrial welding equipment and renewable energy systems
Automotive electronics and high-frequency rectification
