Original MUR2020CT MUR2020CTR 20A 200V Rectifier Diode Pair Matched High-Power Bridge Rectifier Diodes for AC/DC Conversion
Product Overview

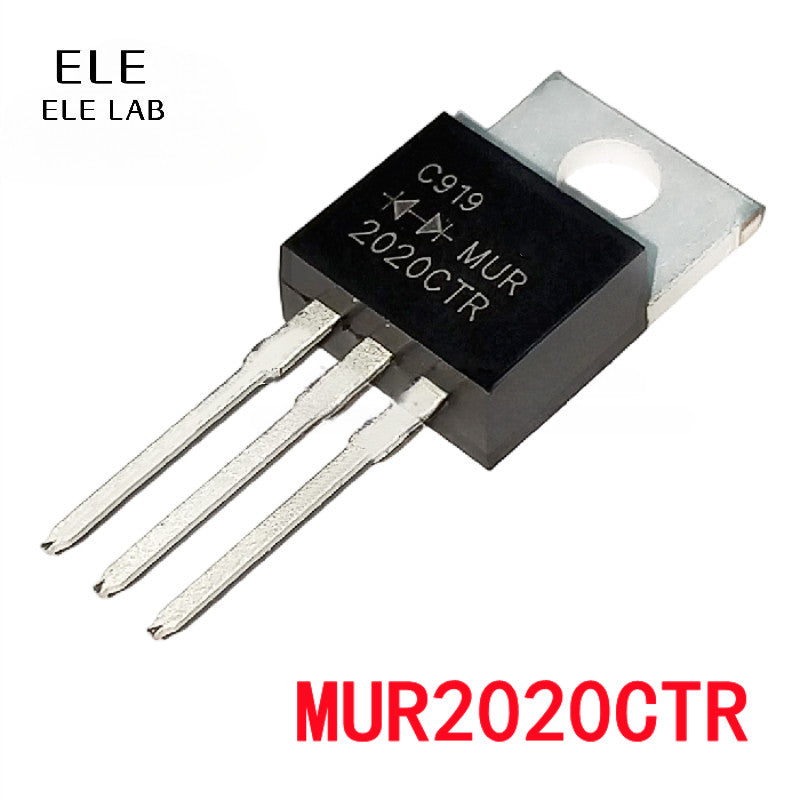

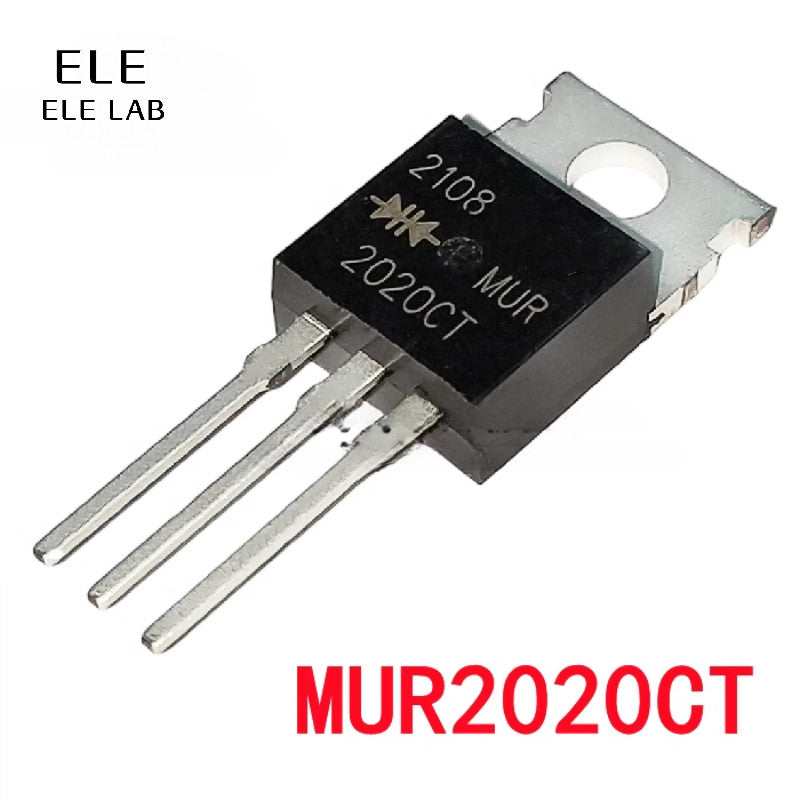

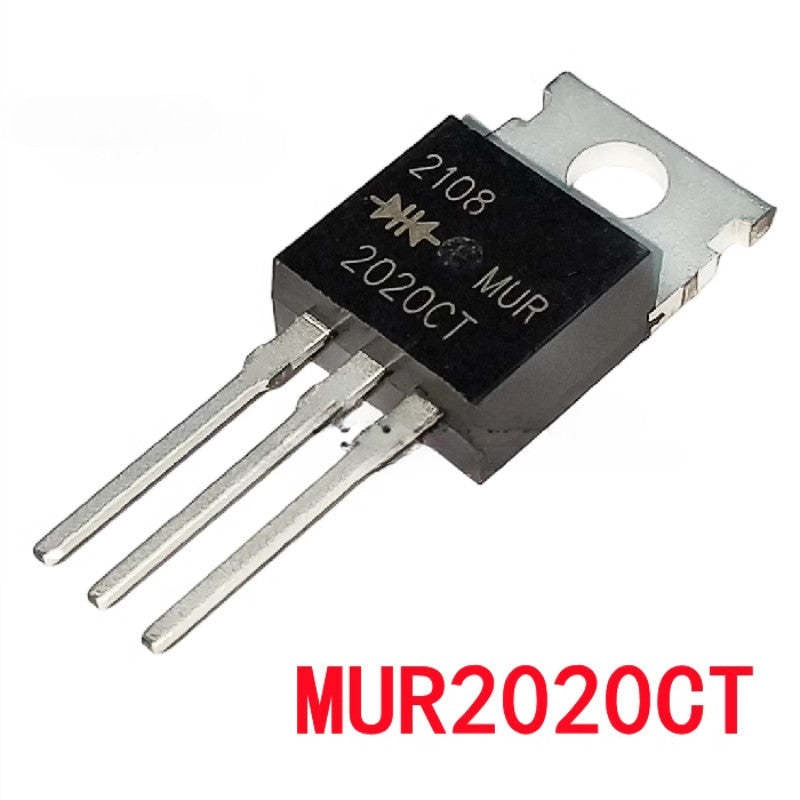

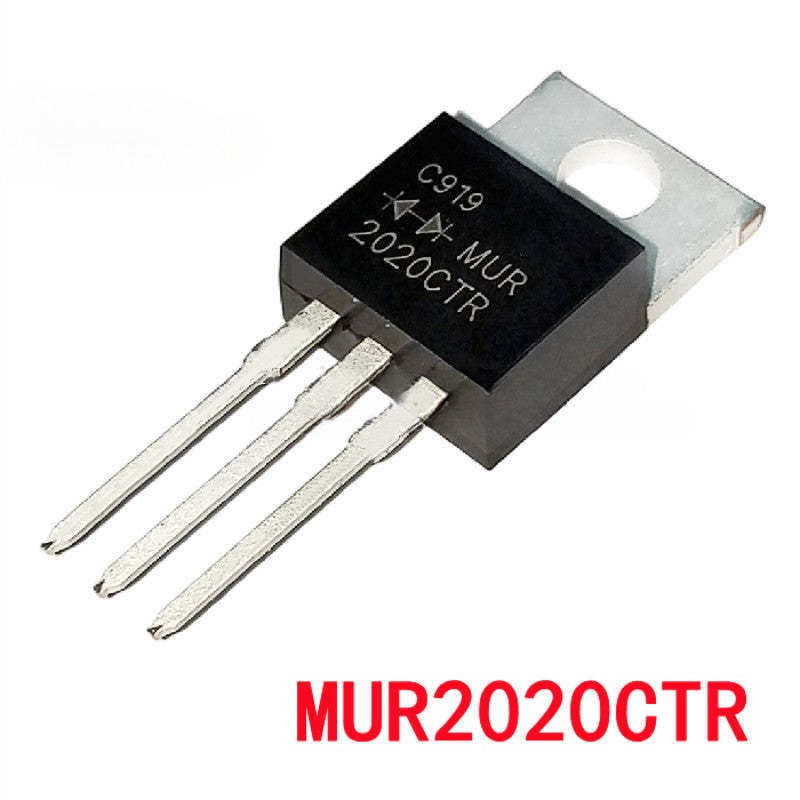

The MUR2020CT (Common Cathode) and MUR2020CTR (Common Anode) are precision-matched rectifier diode pairs designed for high-efficiency bridge rectification and power supply applications. With a 200V reverse voltage and 20A average forward current, these diodes deliver robust performance in AC/DC conversion, motor drives, and industrial power systems. Their complementary cathode/anode configurations simplify full-wave rectifier designs while minimizing power loss and thermal stress.
Matched Pair: Pre-paired common cathode (MUR2020CT) and common anode (MUR2020CTR) diodes for seamless bridge rectifier assembly.
High Current & Voltage: 20A continuous forward current and 200V peak reverse voltage for demanding power circuits.
Applications:
Bridge Rectifiers: Full-wave rectification in power supplies, battery chargers, and UPS systems.
Motor Drives: Current rectification for DC motor controllers and inverters.
Industrial Equipment: Welding machines, CNC power modules, and SMPS circuits.
Renewable Energy: Solar/wind inverter topologies and energy storage systems.
Automotive Electronics: Alternator rectification and EV charging modules.
