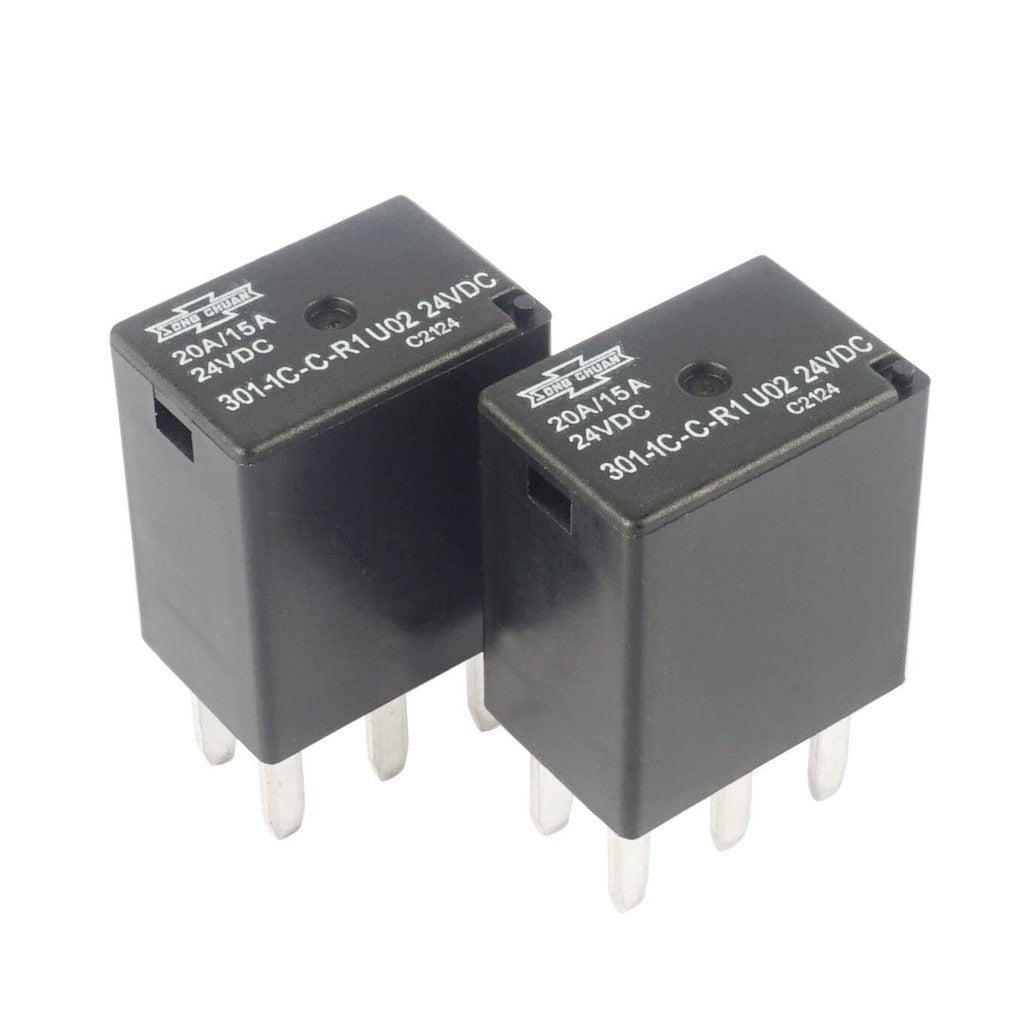

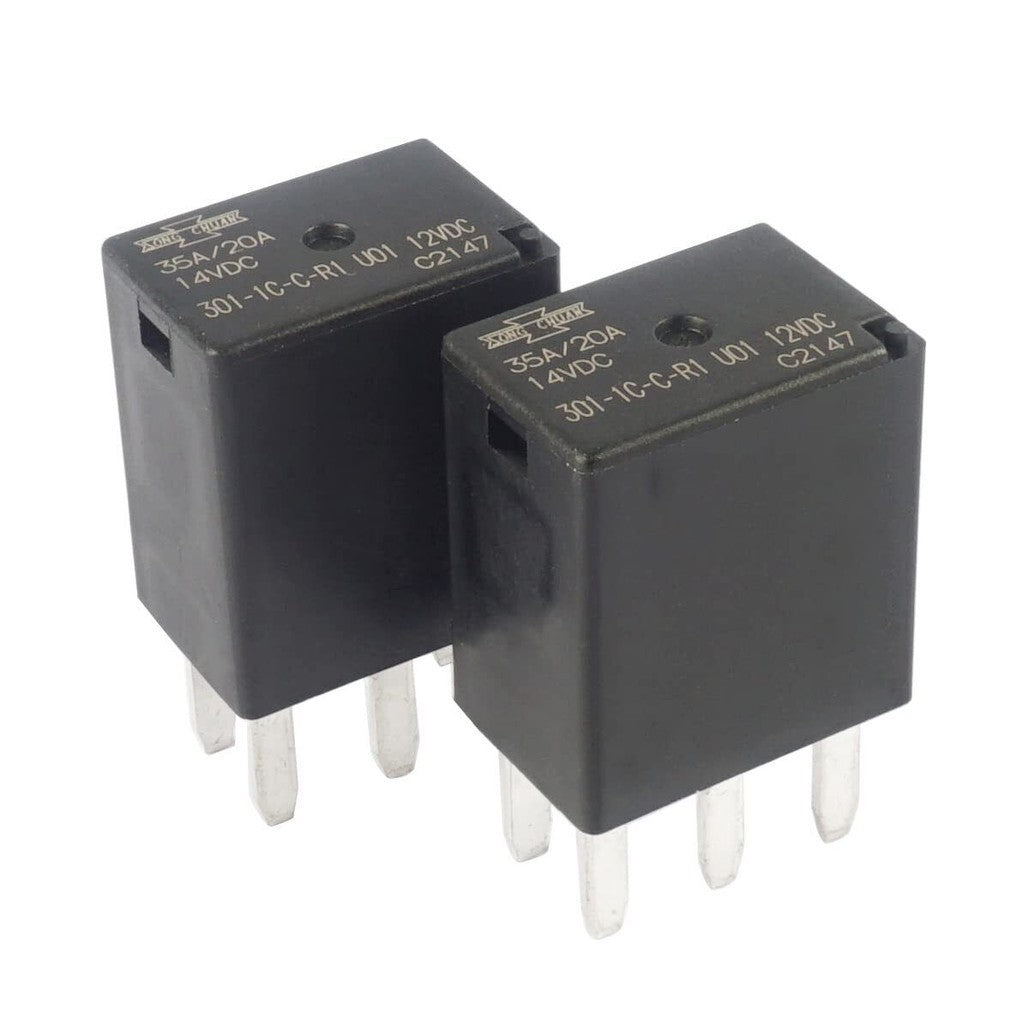

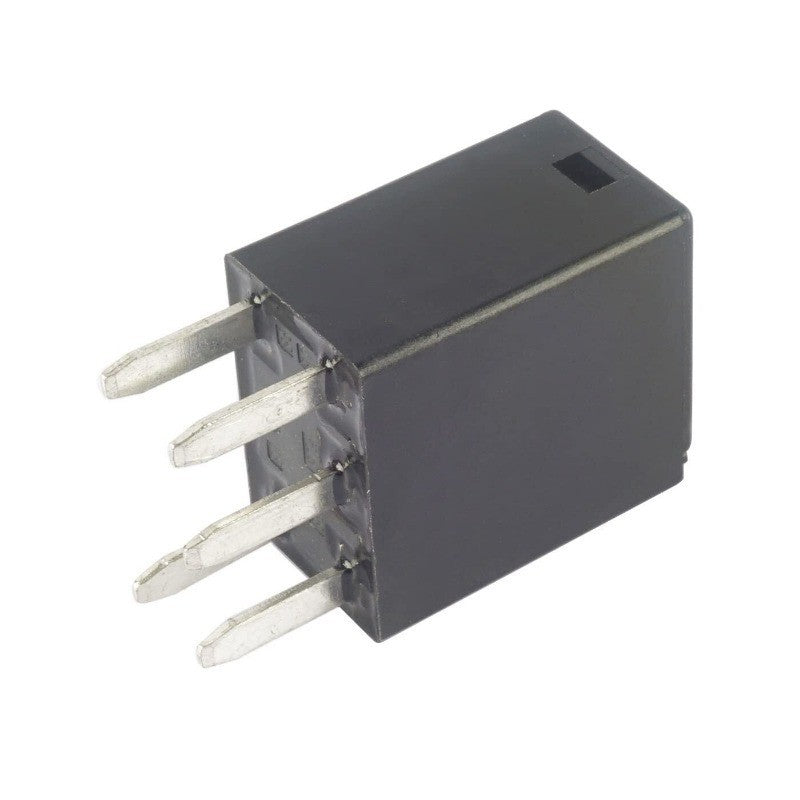

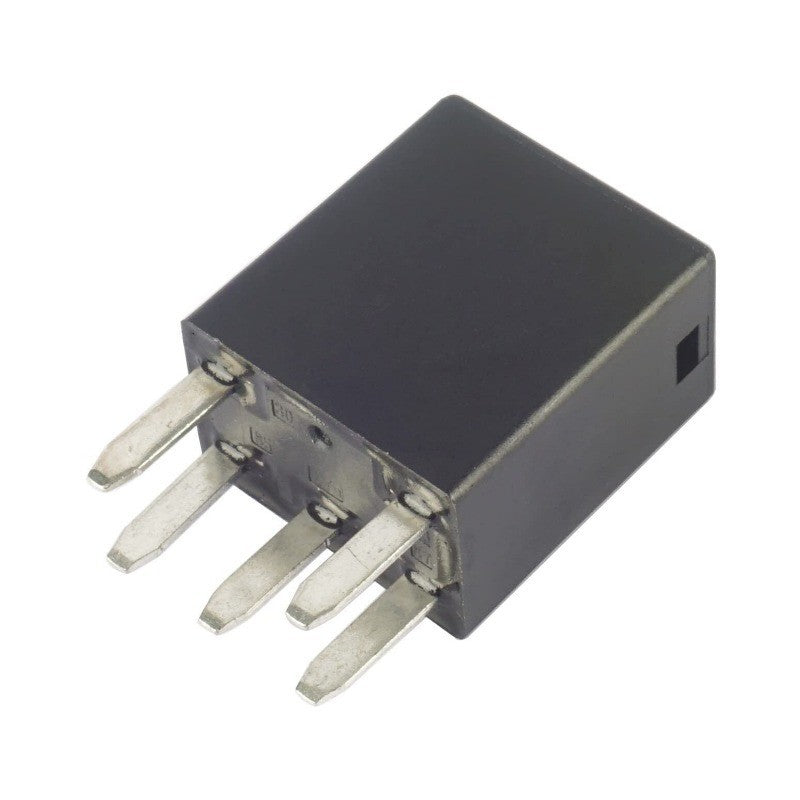

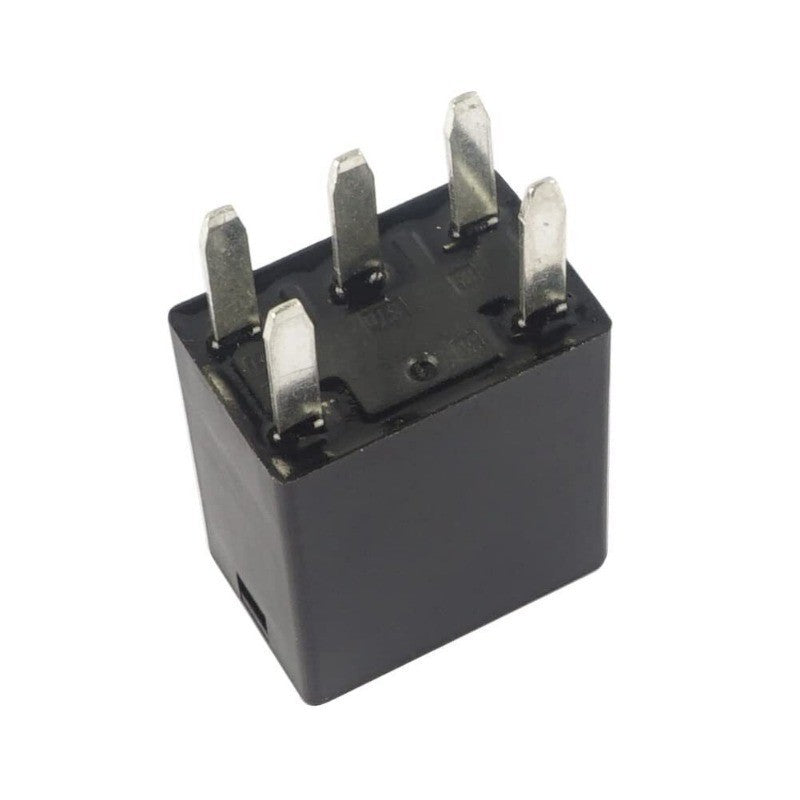

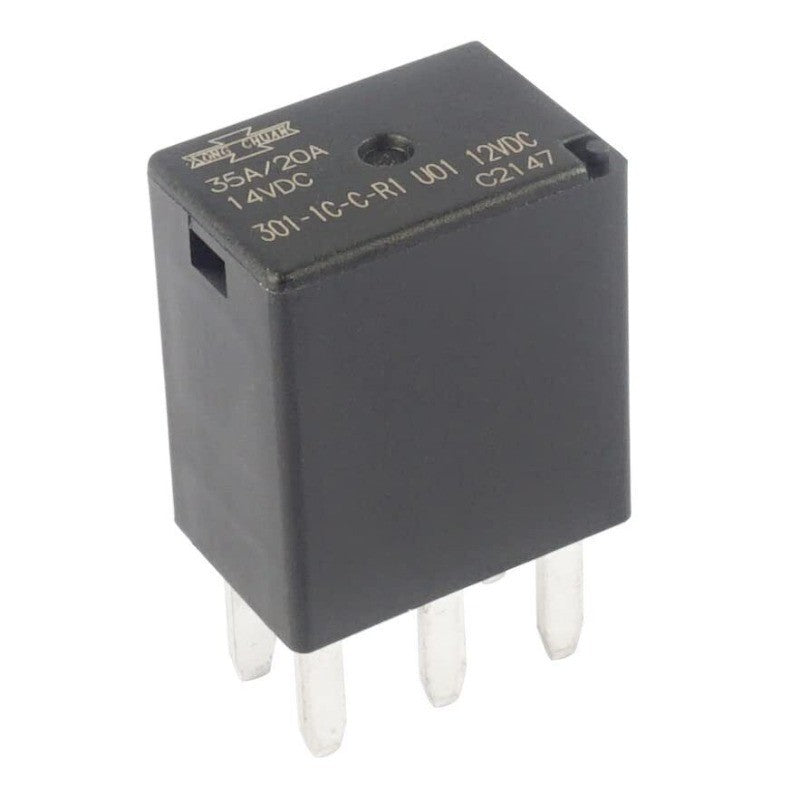

Original 301-1C-C-R1 U01 U02 12VDC 24VDC Automotive Relay 5 Pins SPDT
Parameters of 301-1C-C-R1 U01 12VDC Relay
Package Content: 2 x 301-1C-C-R1 U01 12VDC
ominal Coil Voltage: 12 VDC
Contact Form: SPDT
Contact material: AgSnO alloy
Weight: Approx.20 g
Enclosure style:Flux tight
Resistive load：NO : 35A 14VDC, 15A 28VDC
NC : 20A 14VDC, 10A 28VDC
Contact voltage drop: Typ. 40mV at 10A
Operate time : 10 ms Max.
Release time : 10 ms Max.
Insulation resistance:20MΩ Min. (DC 500V)
Operating ambient temperature:-40~+125°C (no freezing)
