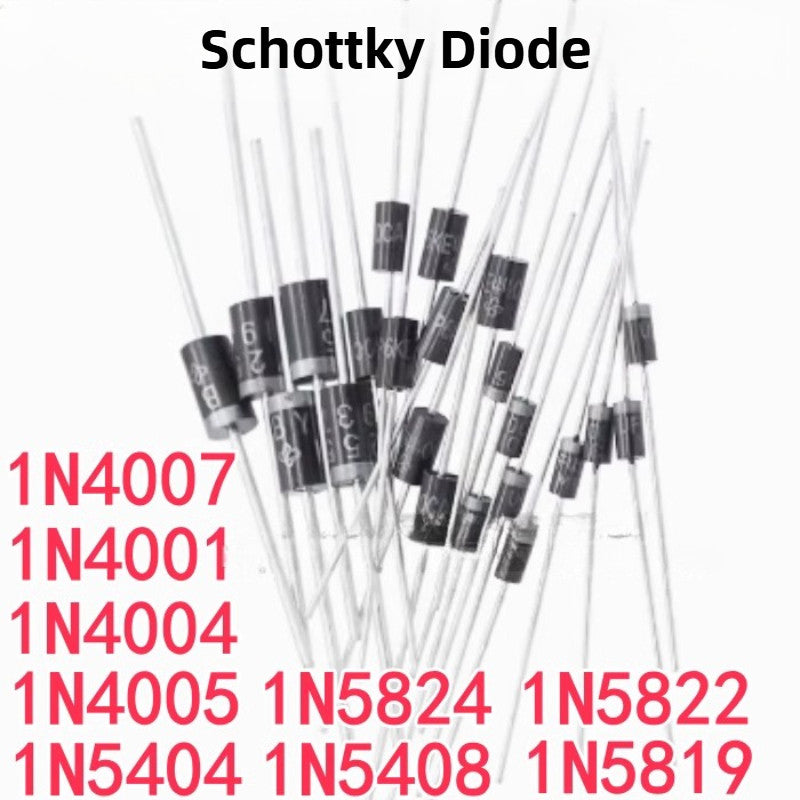

Original 1N4007 IN4001 1N4004 1N4005 1N5404 1N5408 1N5819 1N5822 1N5824 Rectifier Diode Schottky diode
Product Description:
The 1N4001-1N4007, 1N5404-1N5408, and 1N5819/1N5822/1N5824 series are general-purpose and Schottky rectifier diodes designed for efficient AC/DC conversion, reverse polarity protection, and low-loss switching. With current ratings from 1A to 3A and voltage ranges spanning 50V to 1000V, these axial-lead diodes (DO-41, DO-201AD) offer versatility for consumer electronics, industrial systems, and automotive applications. Whether for high-voltage rectification or fast-switching needs, this lineup combines reliability, cost-efficiency, and rugged performance.
1N4001-1N4007: 1A, 50V-1000V standard recovery diodes for basic rectification.
1N5404-1N5408: 3A, 100V-1000V high-current diodes for power circuits.
1N5819/1N5822/1N5824: 1A-3A Schottky diodes (20V-40V) with ultra-low forward drop (0.45V) for efficiency-critical designs.
Applications:
Power Supplies: Bridge rectifiers in adapters, SMPS, and UPS systems.
Automotive Electronics: Alternator circuits, battery charging, and LED lighting.
Consumer Devices: TVs, printers, and home appliance control boards.
Circuit Protection: Reverse polarity protection, flyback diodes for relays/inductors.
Renewable Energy: Solar panel bypass diodes, charge controllers.
Product Description:
The 1N4001-1N4007, 1N5404-1N5408, and 1N5819/1N5822/1N5824 series are general-purpose and Schottky rectifier diodes designed for efficient AC/DC conversion, reverse polarity protection, and low-loss switching. With current ratings from 1A to 3A and voltage ranges spanning 50V to 1000V, these axial-lead diodes (DO-41, DO-201AD) offer versatility for consumer electronics, industrial systems, and automotive applications. Whether for high-voltage rectification or fast-switching needs, this lineup combines reliability, cost-efficiency, and rugged performance.
1N4001-1N4007: 1A, 50V-1000V standard recovery diodes for basic rectification.
1N5404-1N5408: 3A, 100V-1000V high-current diodes for power circuits.
1N5819/1N5822/1N5824: 1A-3A Schottky diodes (20V-40V) with ultra-low forward drop (0.45V) for efficiency-critical designs.
Applications:
Power Supplies: Bridge rectifiers in adapters, SMPS, and UPS systems.
Automotive Electronics: Alternator circuits, battery charging, and LED lighting.
Consumer Devices: TVs, printers, and home appliance control boards.
Circuit Protection: Reverse polarity protection, flyback diodes for relays/inductors.
Renewable Energy: Solar panel bypass diodes, charge controllers.
