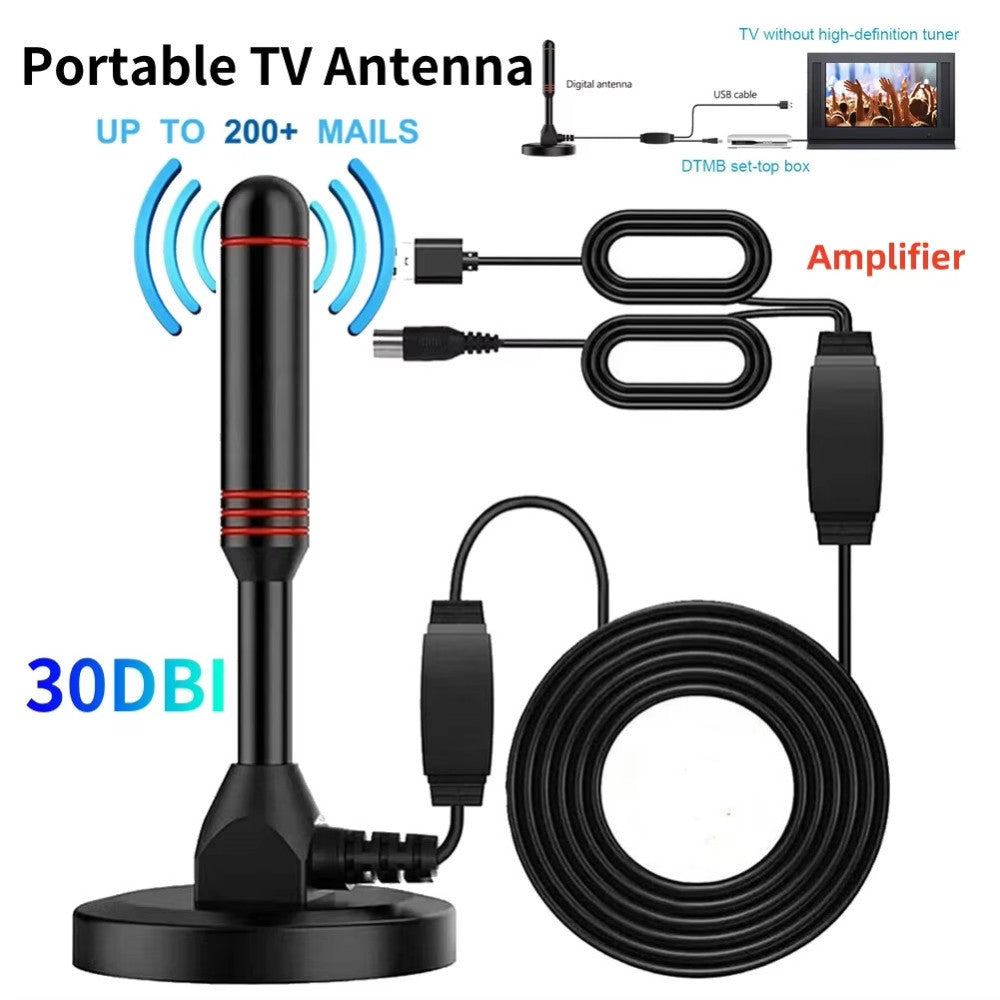

HD Digital TV Antenna Indoor Amplified DAB High Gain 200 Miles with Amplifier Booster VHF/UHF Quick Response Outdoor Aerial Set
Description:
Item type: 200-mile Antenna

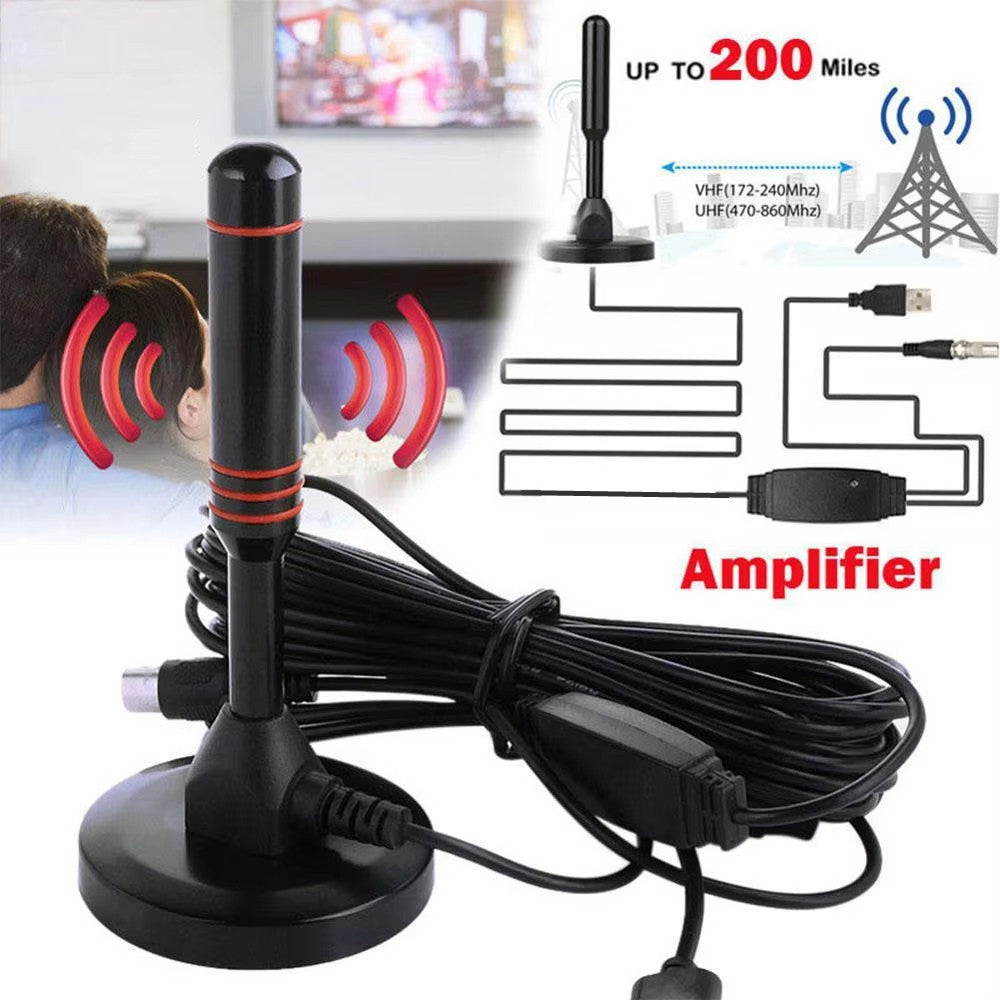

Working frequency: VHF (172-240MHz) / UHF (470-860MHz)
Connector: F male
Type: DVB-T2 Antenna
Received signal: ATSC, DVB-T, DVB-T2, ISDB
Signal range: 200 miles
Material: Metal
Dimension: 2.44 x 5.12 inch (62 x 130mm)
Current consumption: 20mA
Impedance: 75Ω

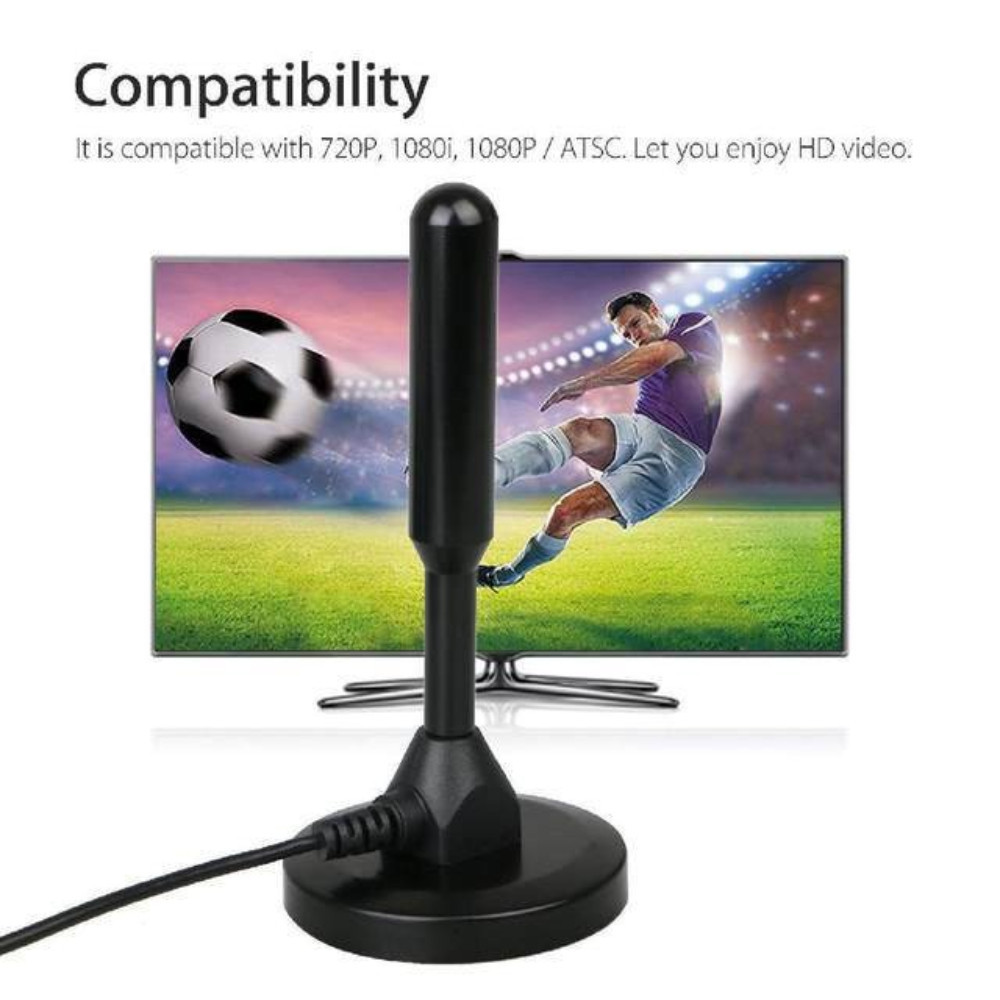

Compatibility: 720p, 1080i, 1080p / ATSC
Storage temperature: -45-85 ℃
Cable length: approx. 4.5 meters / 14.77ft
Working temperature: -45-85 ℃
Net Weight: 7.6 oz (216g)

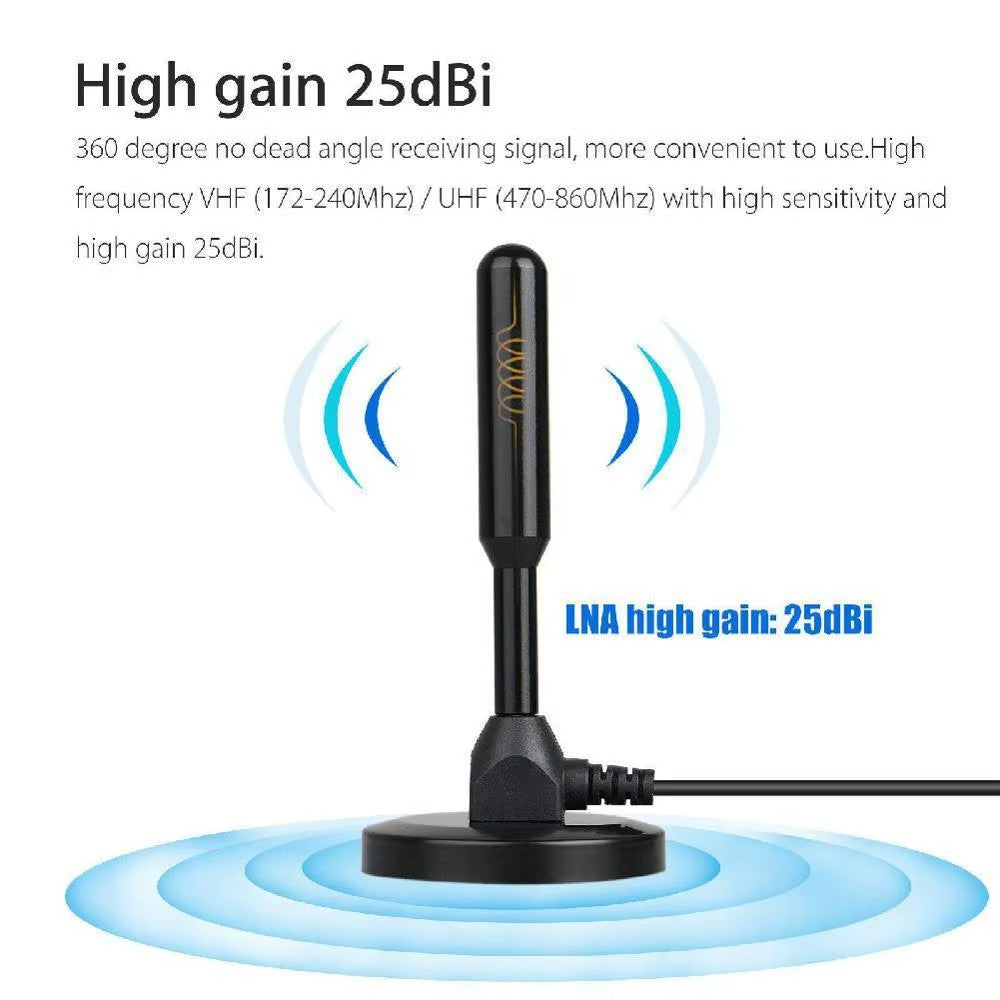

LNA high gain: 25dBi
Voltage: 5V
How to use:
Step 1: Connect the end (f-male) of attached coaxial cable to the ANT / IN connector on the back of the TV or DVB-T tuner.
Step 2: In the TV's setup menu, set the tuner mode to "Antenna" or "Air". for more detailed instructions, please consult your TV manual.
Step 3: In the TV's setup menu, set TV to "scan" for channels. This can sometimes be referred to as auto program, auto scan, channel search or channel scan. Consult the TV manual for detailed instructions.
Step 4: If reception is sporadic, try moving the antenna to another location and rescanning the TV until optimal position is found.
Step 5: fix the antenna at the optimal position you found.
Package Includes:

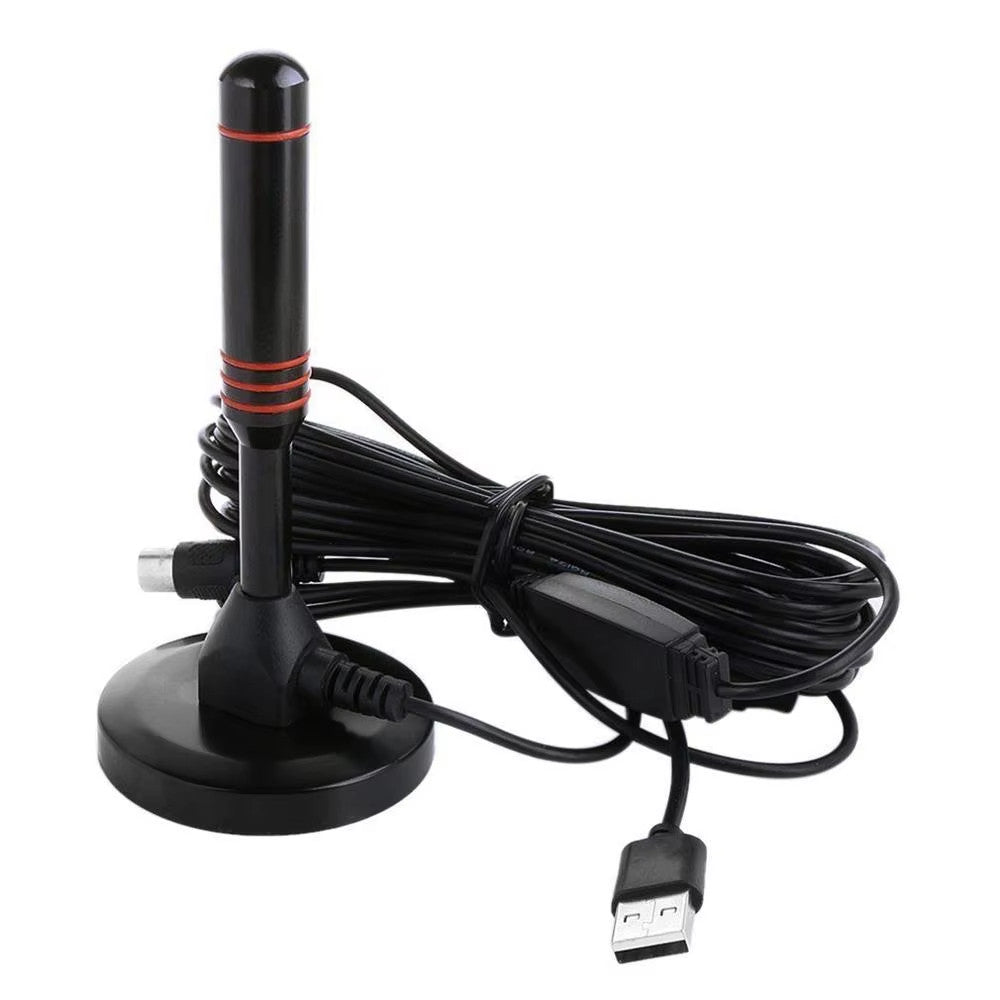

1 x 200-mile Antenna
