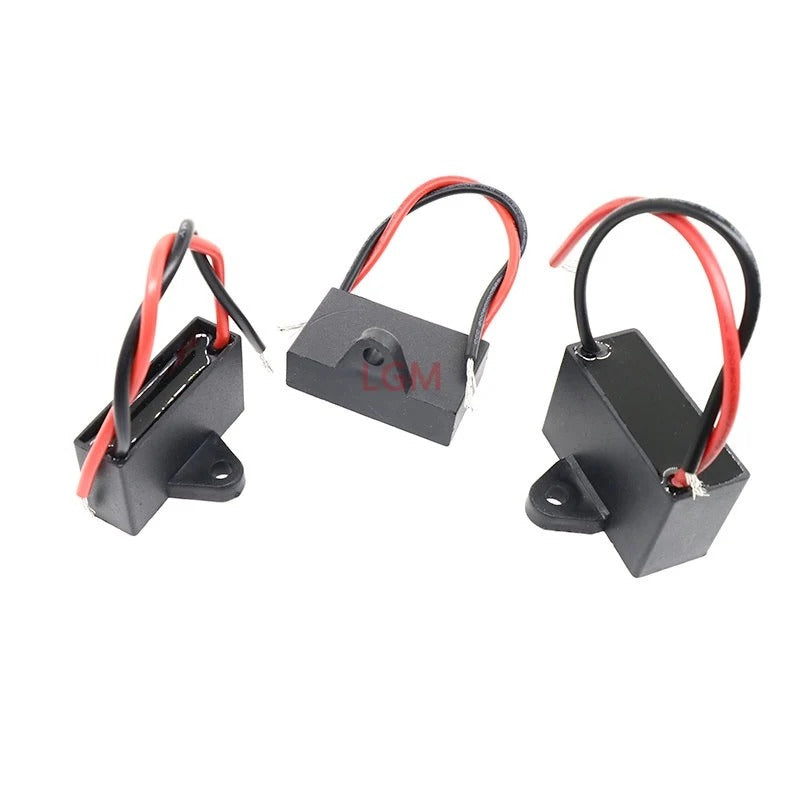

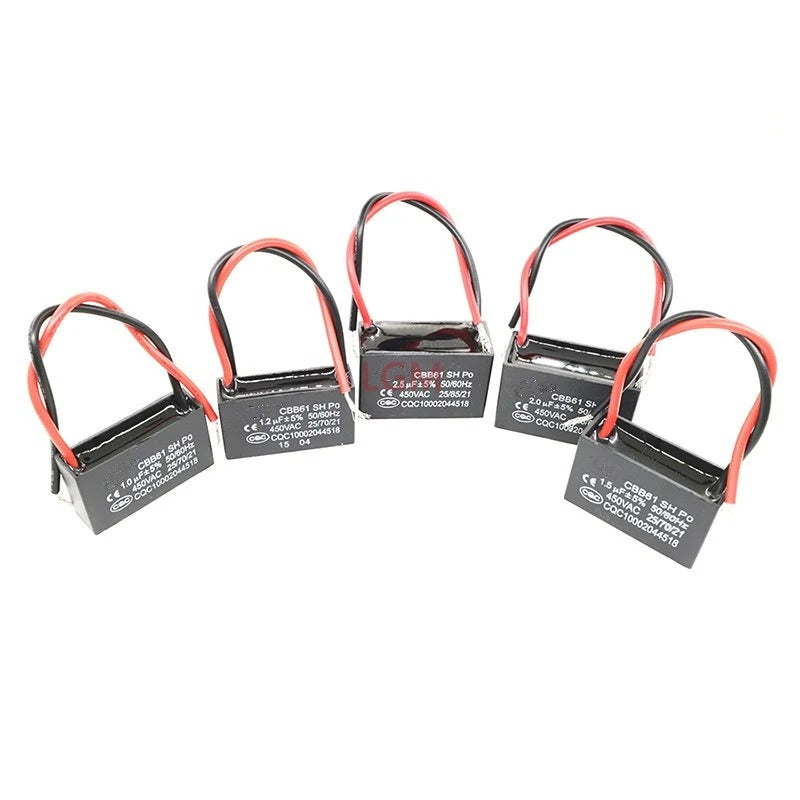

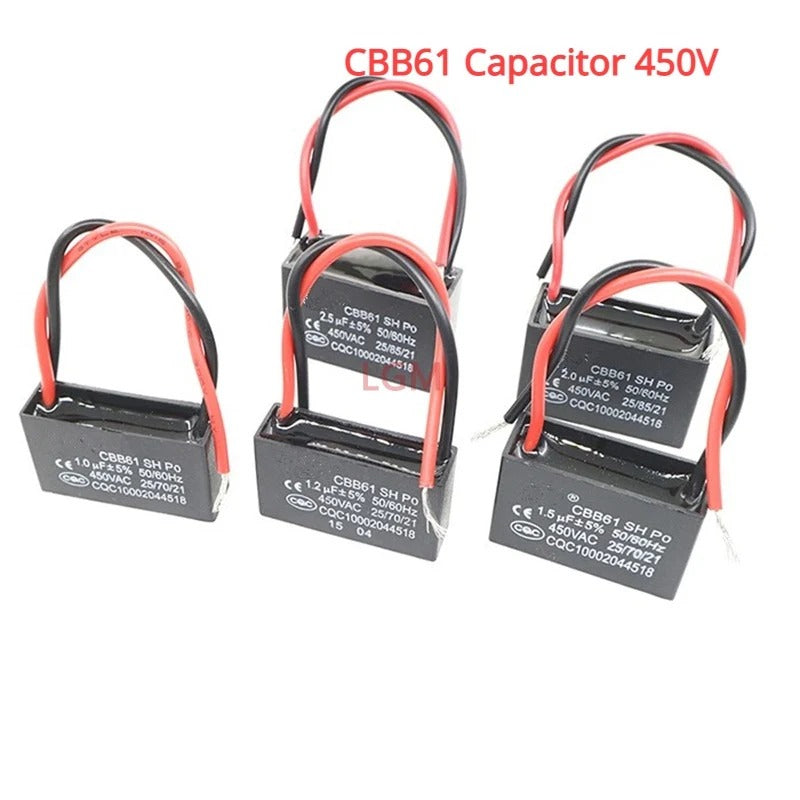

CBB61 Capacitor 450V 0.8UF 1UF 1.2UF 1.5UF 1.8UF 2UF 2.2UF 2.5UF 2.7UF 3UF 3.5UF 4UF 4.5UF 5UF 6UF 7UF 8UF 10UF 12UF 14UF 15UF 16UF
Scope of application:
Widely used in air conditioning fans, electric fans, exhaust fans and other frequency of 50Hz/60Hz AC power supply power is relatively small single-phase motor start and operation.
The technical specification
1.Technical Characteristics: Climate Category: 40/70/21 or 40/85/21
2.Capacity deviation: ±5%
3.Insulation resistance: ≥3000S (MΩ·μF)
4.Tangent of loss Angle: Tg δ≤0.002(50Hz ~ 100Hz)
Use requirements:
1.Altitude: ≤2000m
2.Residual voltage at input: not exceeding 10% of the rated voltage
3.Maximum permissible voltage: not more than 1.1 times the rated voltage
4.Maximum permissible current: not more than 1.3 times the rated current
