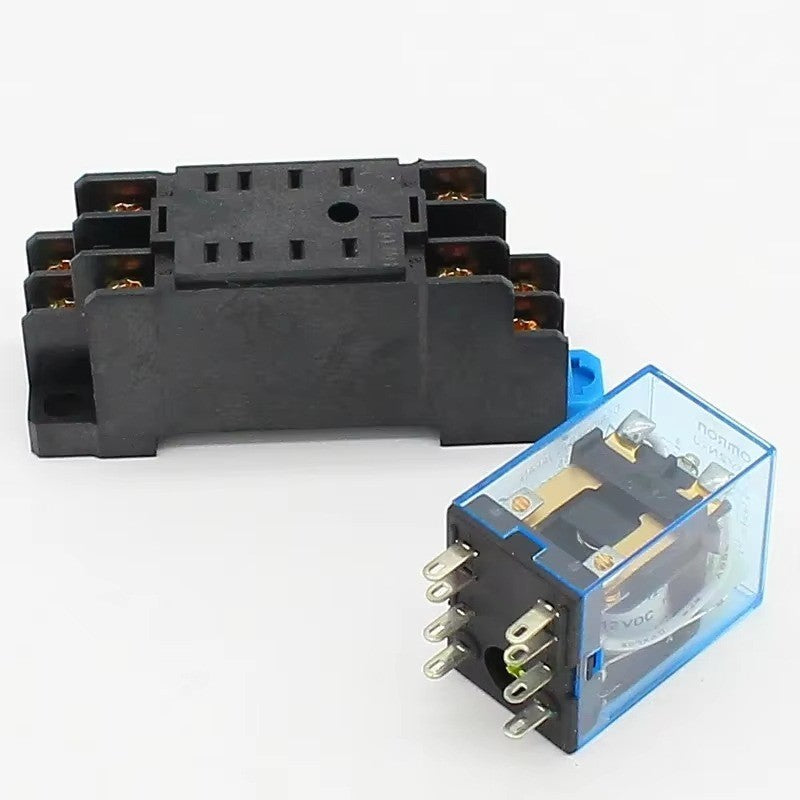

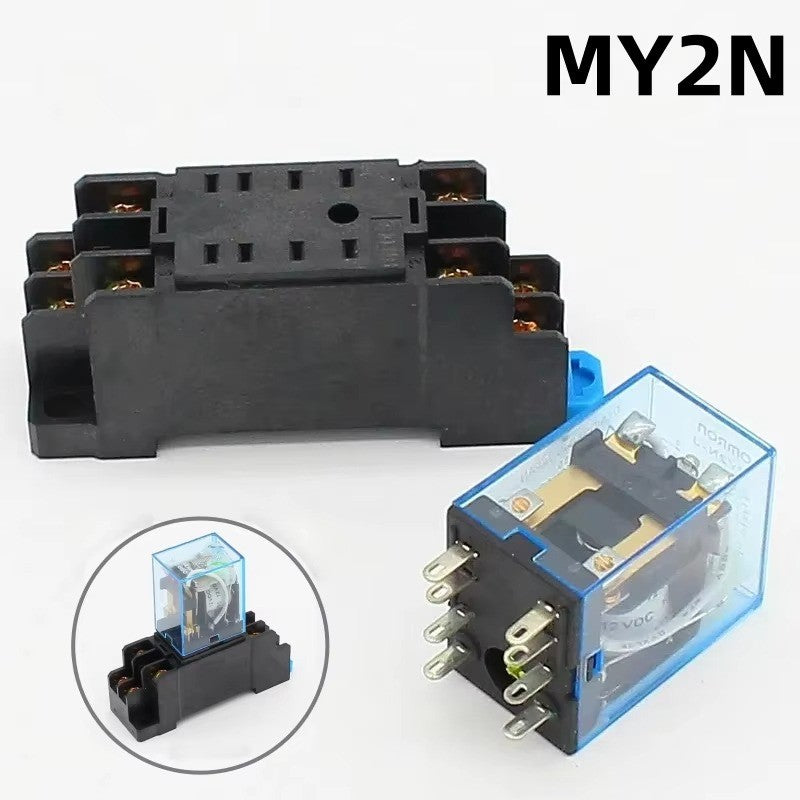

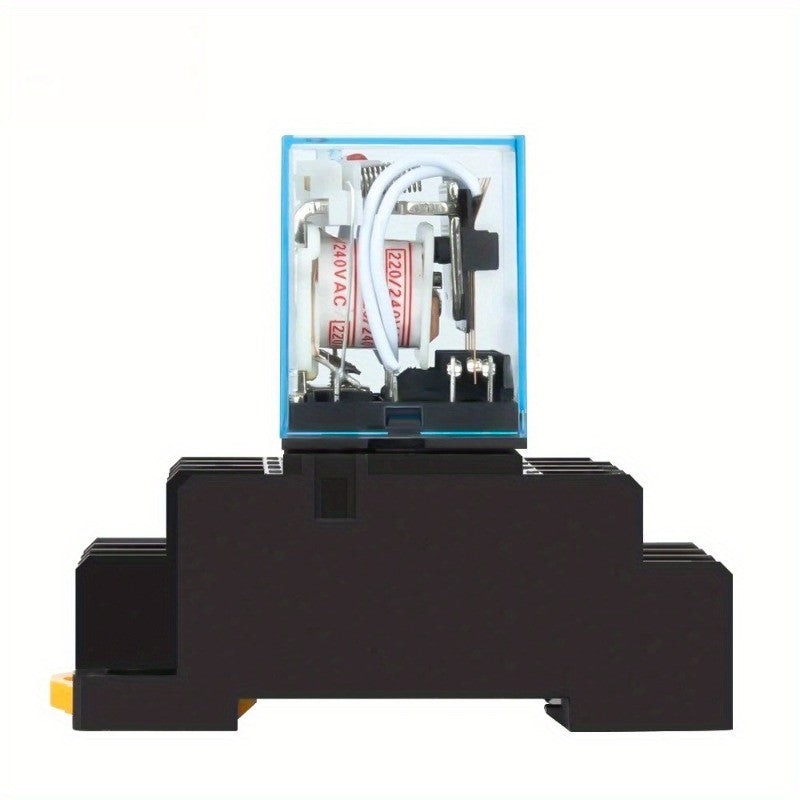

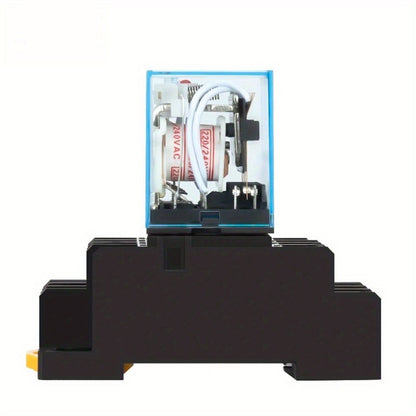

8Pin MY2NJ Relay Coil General DPDT Micro Mini Electromagnetic Relay Switch with Socket Base LED AC 220V DC 12V 24V
Description
Product Model:MY2NJ

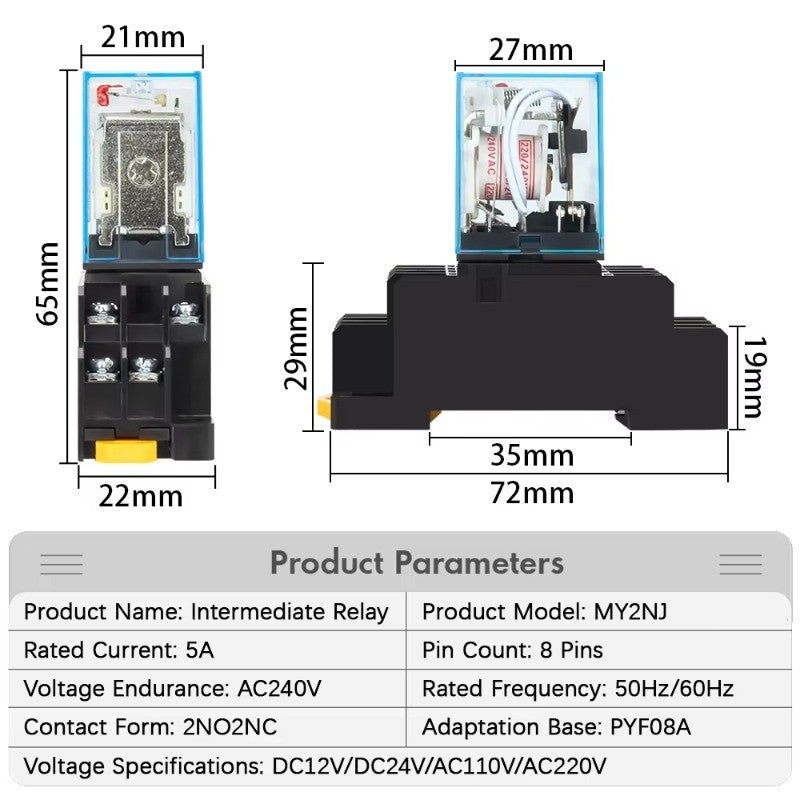

Outline Dimension(L×W×H) (mm):27.5×21×35.5(mm)
Initial Contact Resistance:50mΩ (1A 6VDC)
Coil Voltage:
Operate Time(at nomi. Volt):25ms
Release Time(at nomi. Volt):25ms
Coil Power(W):0.9W, AC:1.2VA
Contact Rating:5A 250VAC/30VDC
Insulation Resistance:1000MΩ,500VDC
Dielectric Strength:
Between Open Contact:1000VAC 1min.
Between Coil and Contact:1500VAC 1min.
Electrical Life:1×105
Mechanical Life:1×107
Max. Switching Voltage:250VAC/30VDC
Max. Switching Current:7A
Max. Switching Power:210W/1750VA
Impact Resistance:
Stability 100m/s2 Intensity 1000m/s2
Humidity:98% R.H.+40%
Temperature Range:-55~+70°C
Vibration Resistance:1mm 50~55Hz
Construction:Dust cover
Package include:
1 x Power Relay+1 x Socket
