5Pcs Original Transistors TIP120 TIP122 TIP125 TIP127 TIP142 TIP147 TO-220
Product Description:
The TIP120/TIP122/TIP125/TIP127/TIP142/TIP147 series are robust Darlington transistors in TO-220 through-hole packages, designed for high-power amplification and switching applications. Combining NPN and PNP configurations with built-in freewheeling diodes, these transistors deliver exceptional current handling (up to 10A) and voltage tolerance (up to 100V), making them ideal for driving inductive loads in automation, automotive, and power systems.
Key Features:
High Current Capacity:
NPN Series (TIP120/TIP122/TIP142): 5A continuous (8A peak) collector current.
PNP Series (TIP125/TIP127/TIP147): Complementary 5A-10A current ratings.
Voltage Ratings:
TIP120/TIP125: 60V (VCEO).
TIP122/TIP127/TIP142/TIP147: 100V (VCEO) for high-voltage circuits.
Applications:
Motor speed control (DC motors, stepper drivers)
Solenoid/relay drivers in automotive electronics
Power supply crowbar circuits and H-bridge inverters
Industrial automation (PLC outputs, valve controllers)
DIY projects (robotics, LED dimmers, battery chargers)
Technical Specifications:
Models:

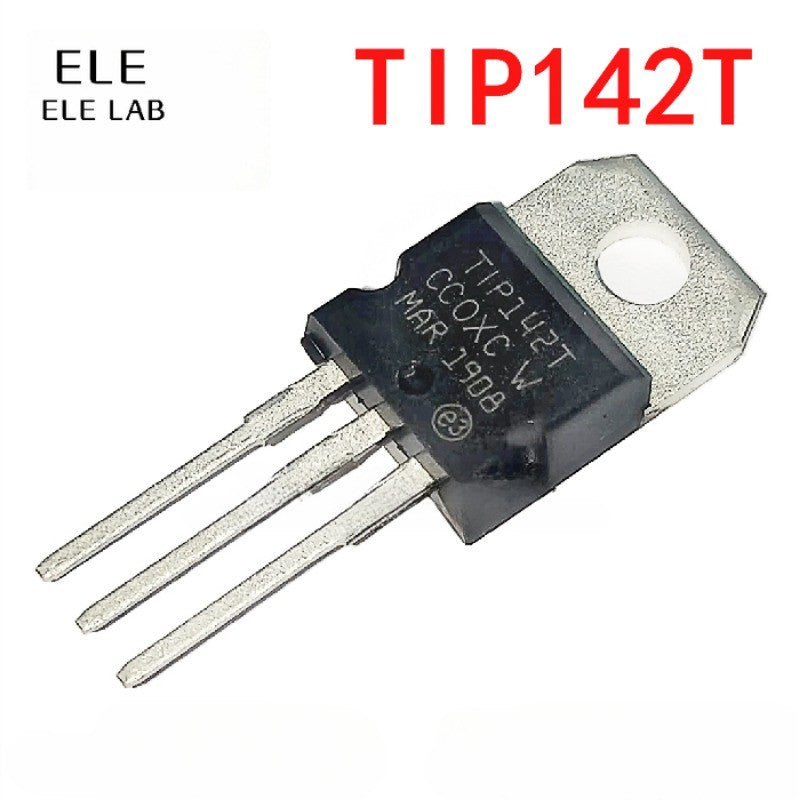

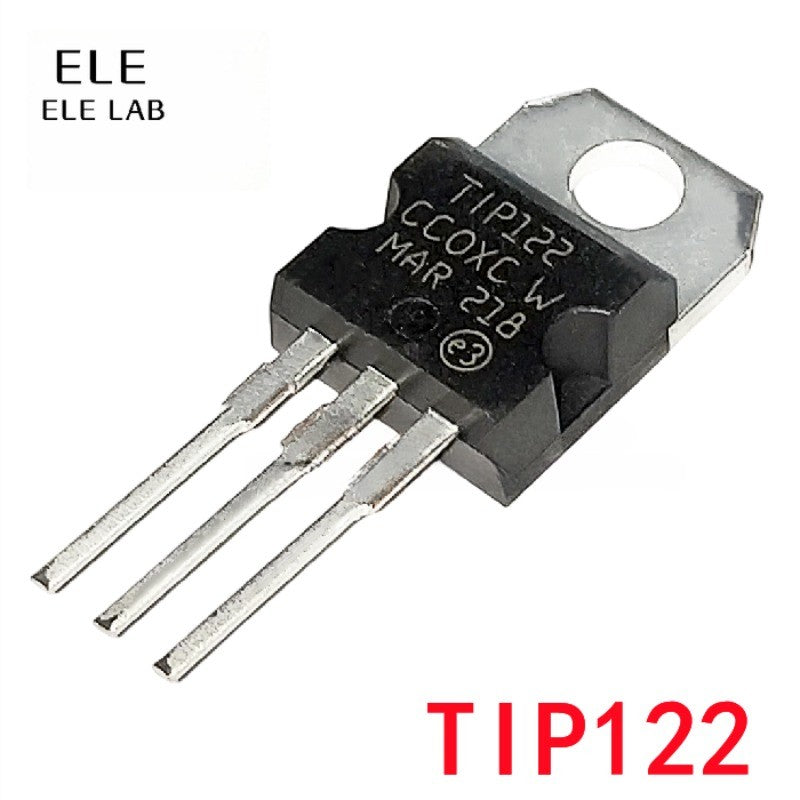

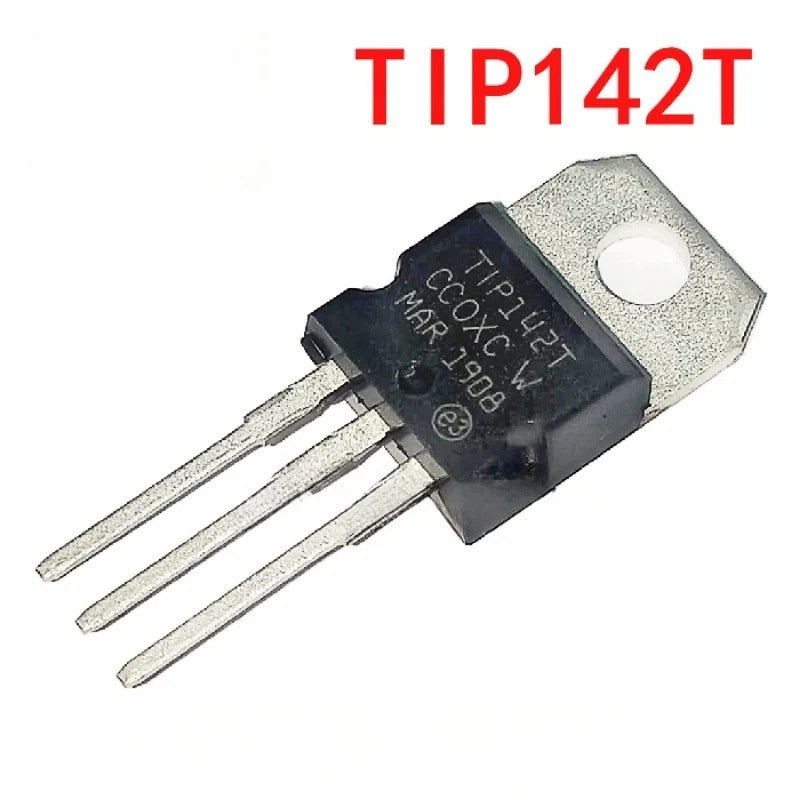

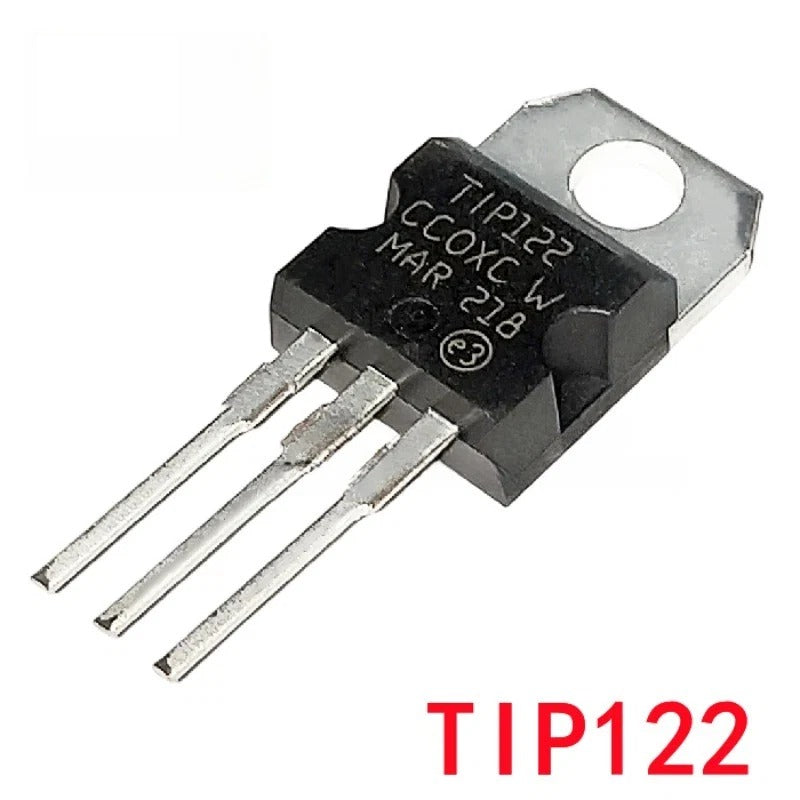

NPN: TIP120 (60V/5A), TIP122 (100V/5A), TIP142 (100V/10A)

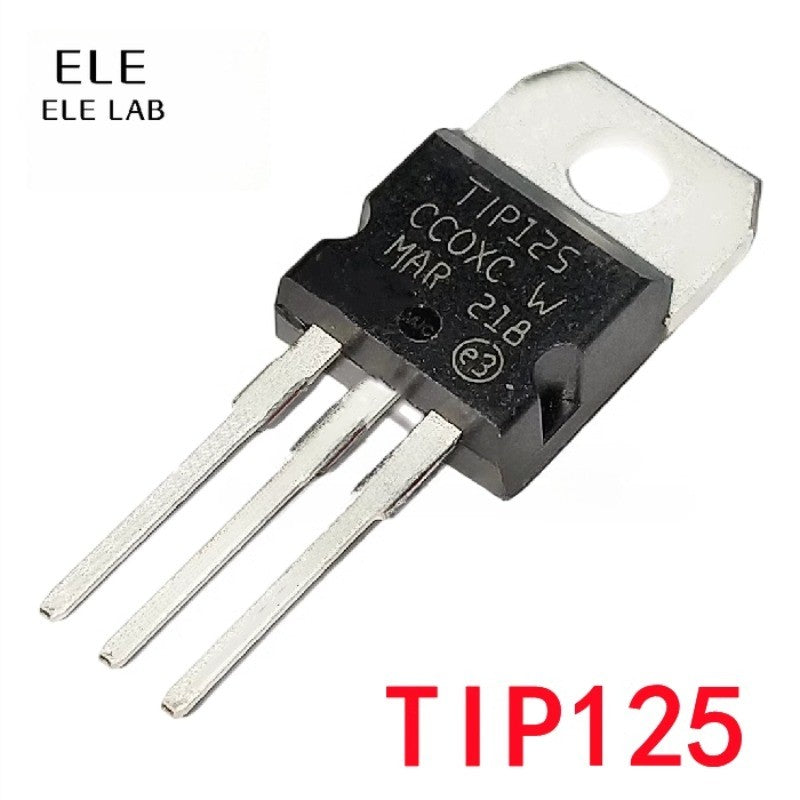

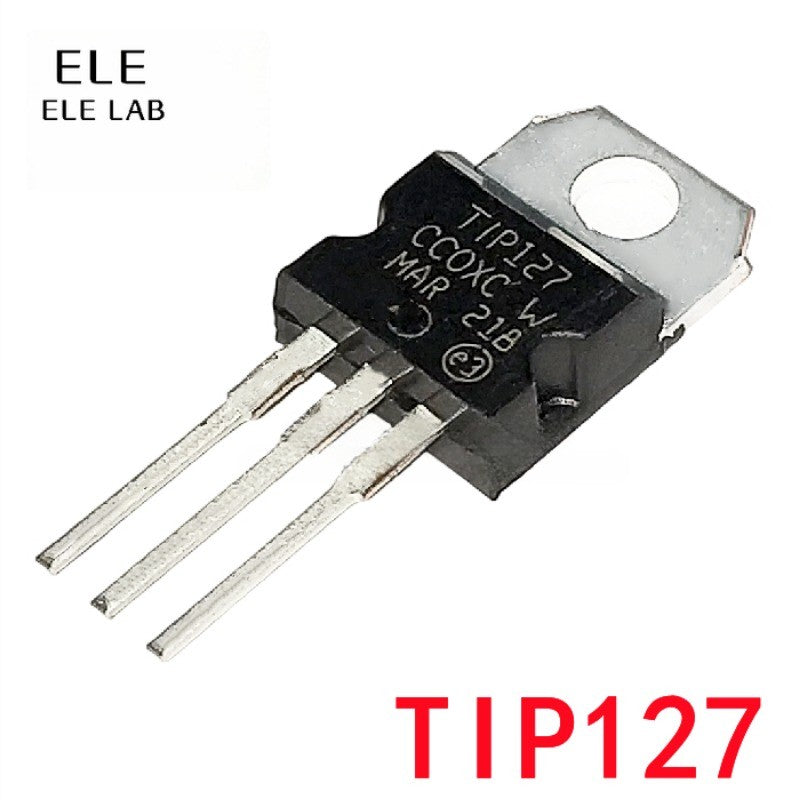

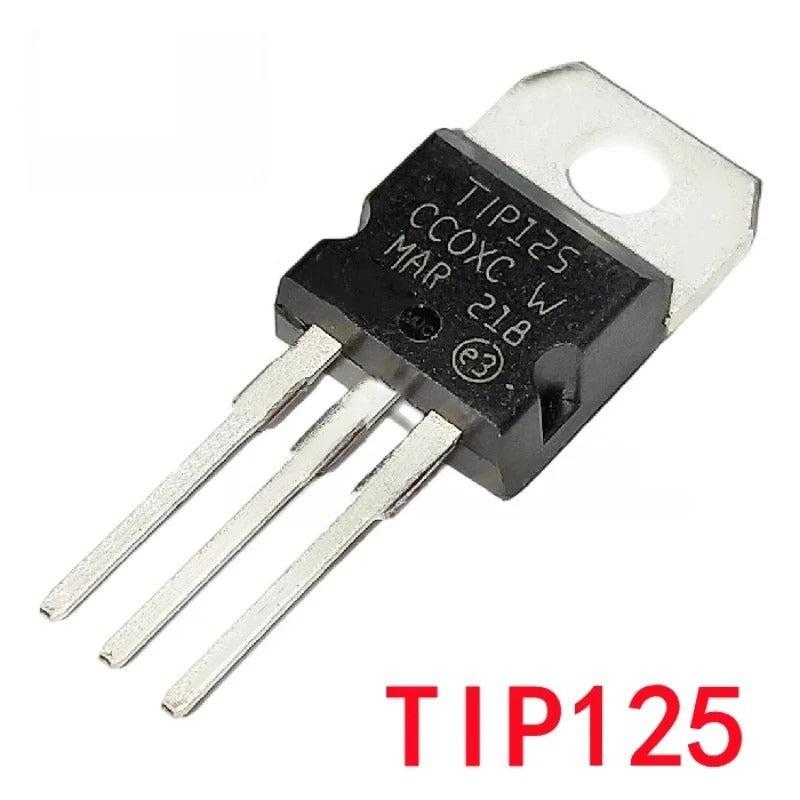

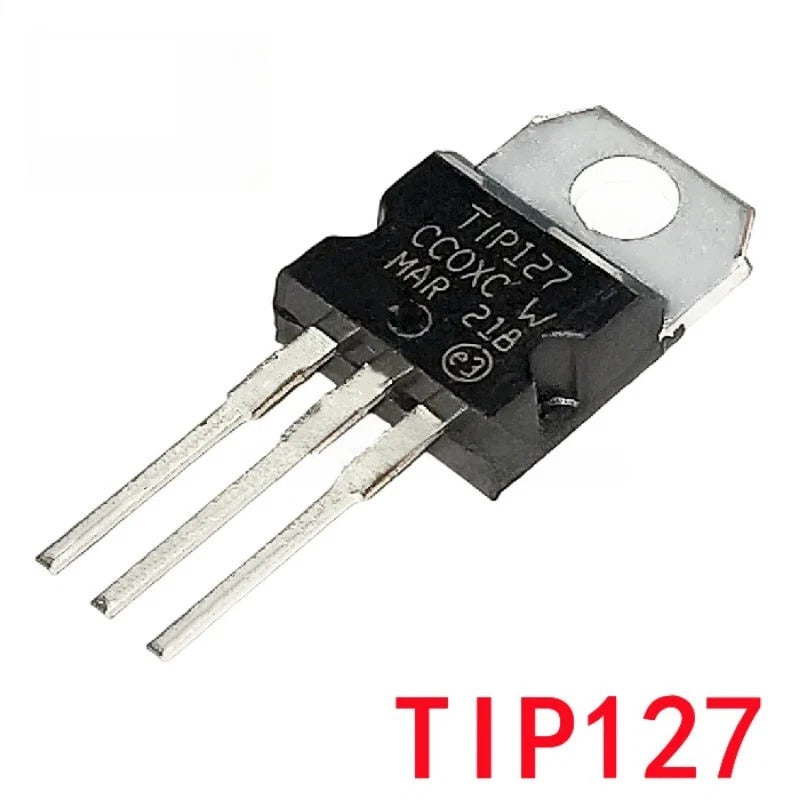

PNP: TIP125 (60V/5A), TIP127 (100V/5A), TIP147 (100V/10A)
Package: TO-220 (through-hole, non-isolated)
