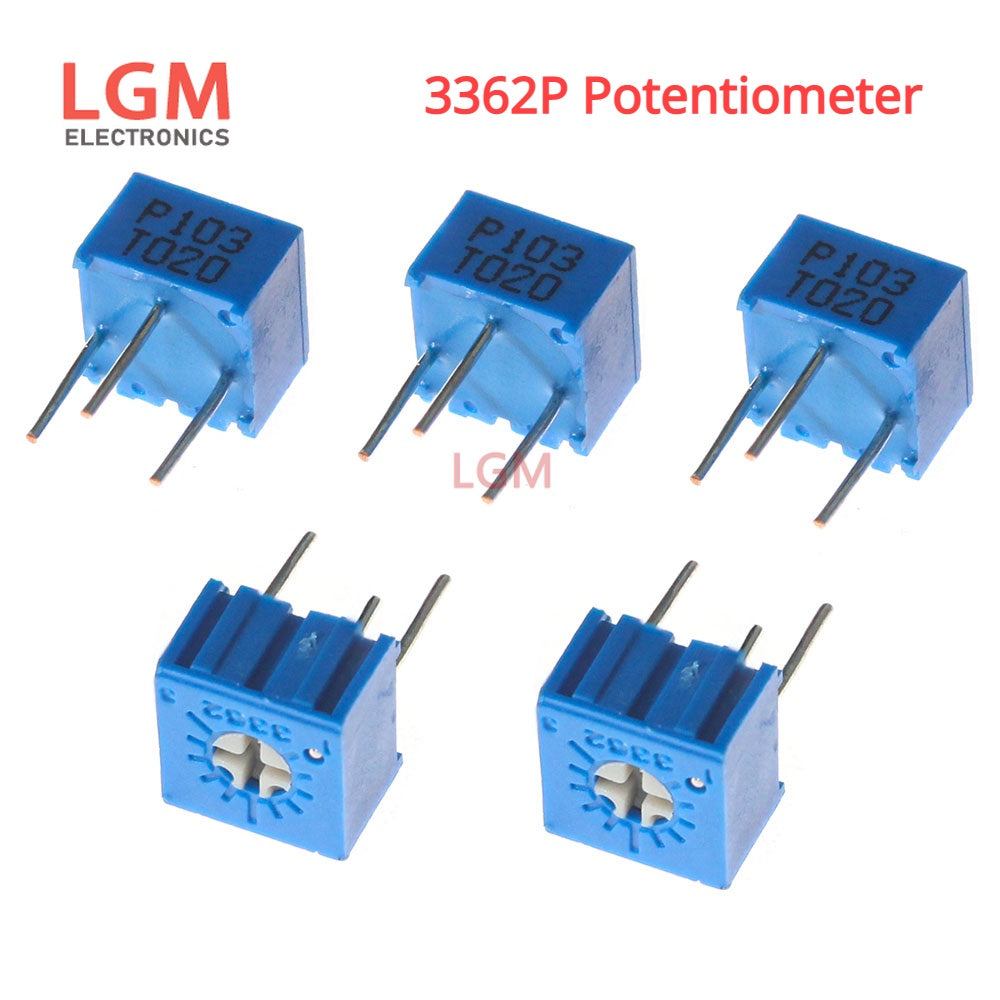

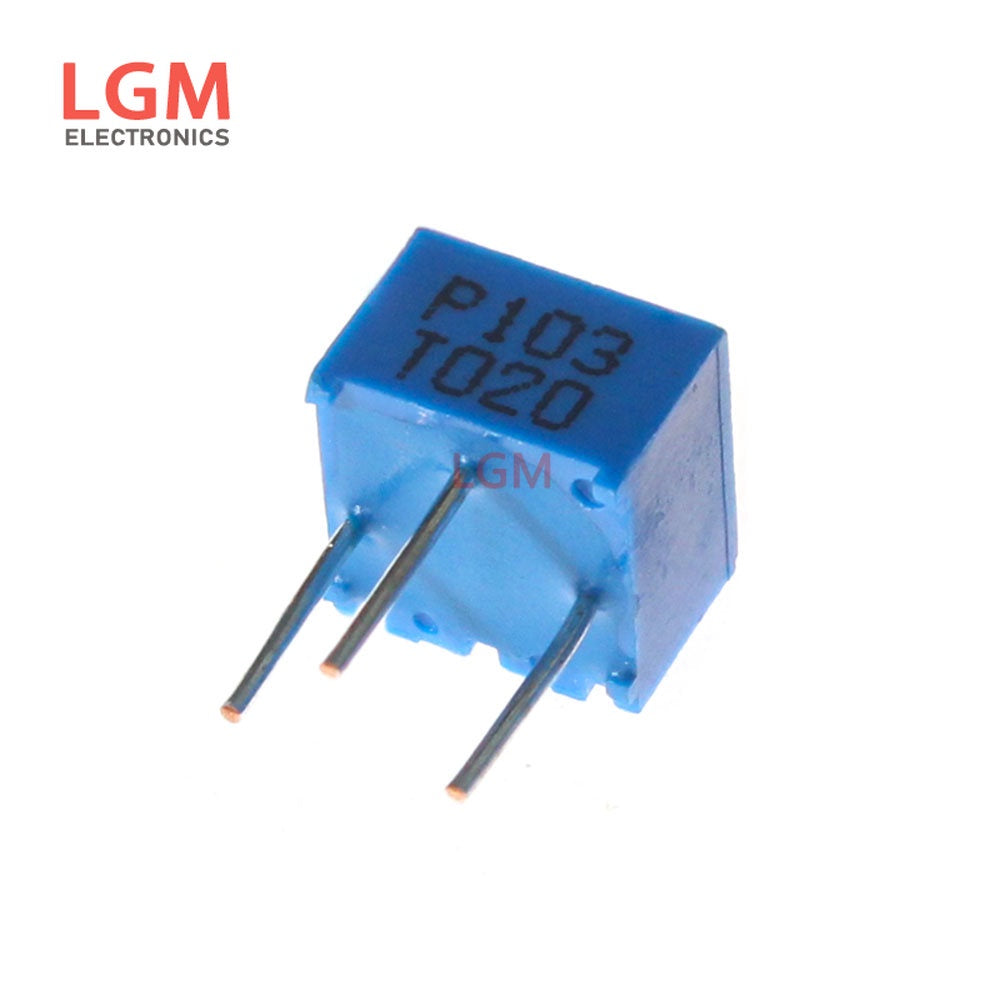

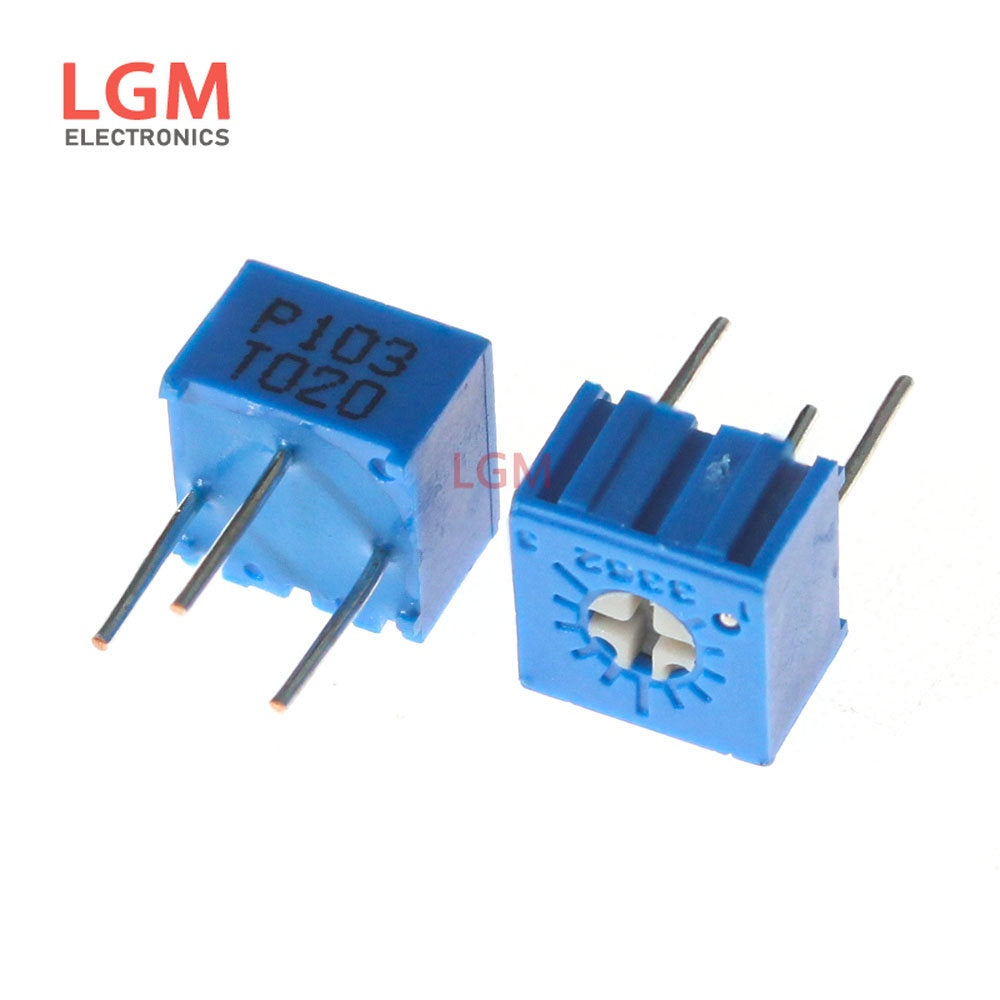

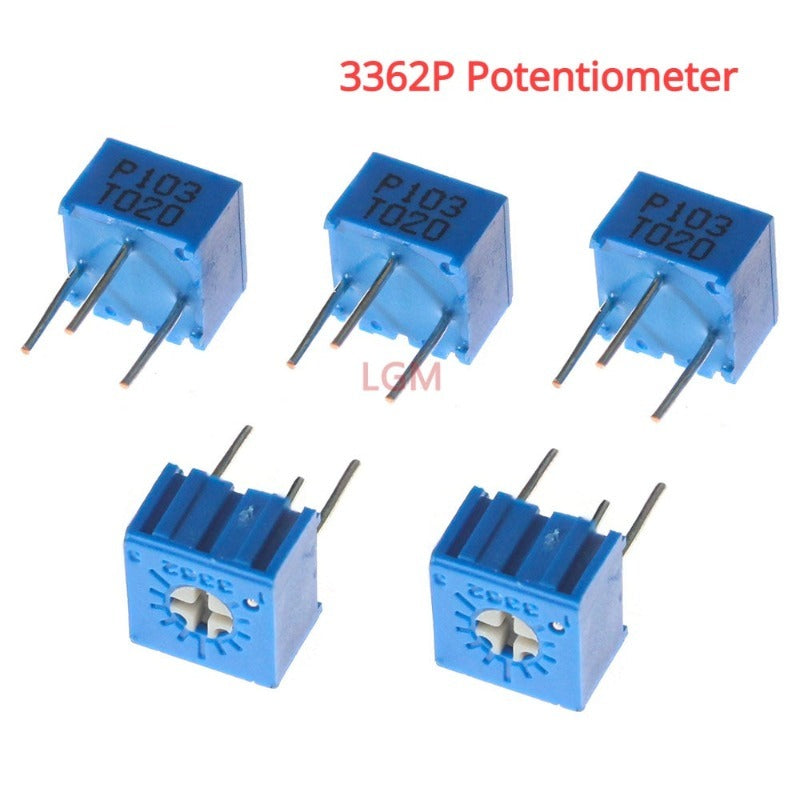

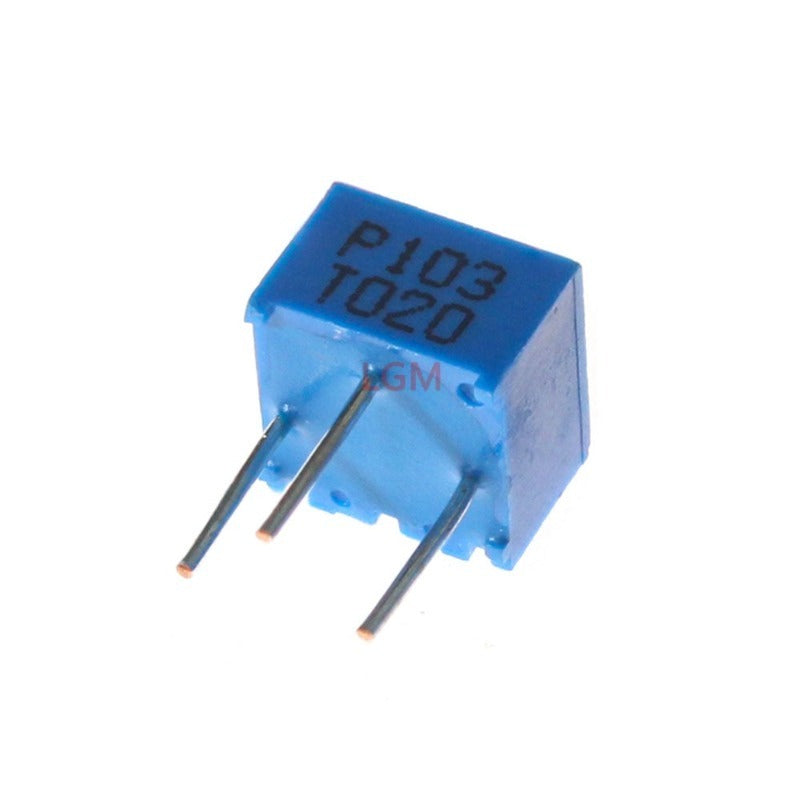

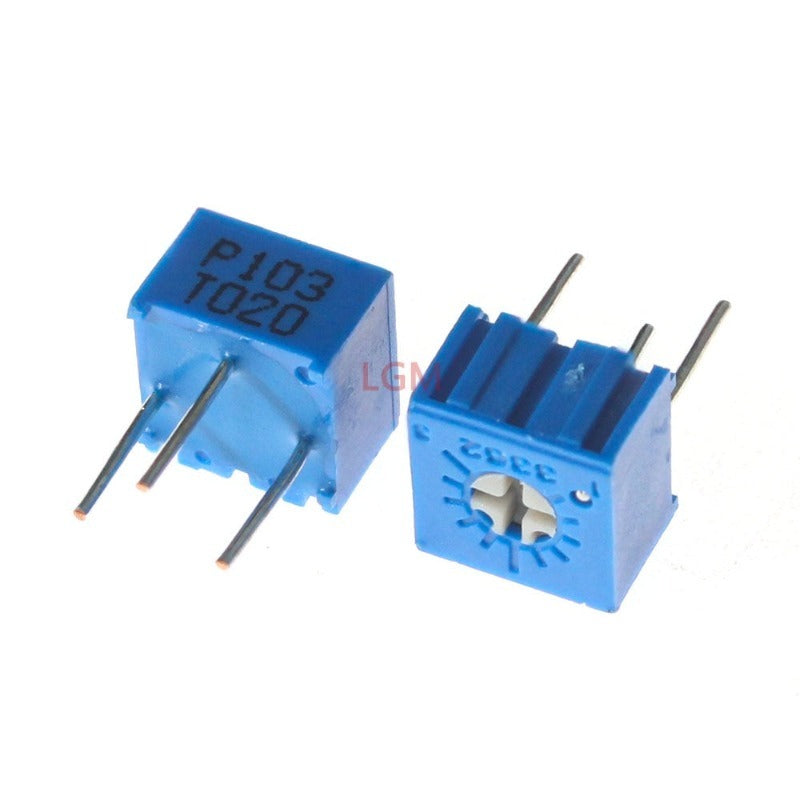

20Pcs 3362P Potentiometer 3362 Trimpot Trimmer Potentiometer 10R 20R 50R 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 500K 1M 2M
Product Introduction:
Potentiometer is usually composed of a resistor and a movable brush, when the brush moves along the resistor, at the output end to obtain a certain relationship with the displacement of the resistance value or voltage, potentiometer can be used as a three-terminal component or as a two-terminal component, because of its role in the circuit to obtain a certain relationship with the input voltage (applied voltage) output voltage is called a potentiometer.
Name: 3362P
Parameters:
Rated power consumption: 0.25W
Nominal resistance range and resistance series
Nominal resistance range: 100 2MQ
Resistance series: E3 series in IEC63 is preferred, and 1 significant digit is taken, that is, 1, 2, 5.
Permissible deviation of resistance: ±10%
Temperature coefficient of resistance
TCR≤±250X10-6/C
(TCR≤±250X10-6/C)
Resistor limit voltage: 315V (DC or AC RMS).
WITHSTAND VOLTAGE (AC PEAK VOLTAGE WITH FREQUENCY 4060HZ)
Normal atmospheric pressure: 600V
LOW PRESSURE 8.5KPA (85MBAR): 450V
Climate category: 55/125/04
Total mechanical travel: 240±10°
Stability Level: 10
Load wear cycles: 200 weeks
Power reduction curve
