10/5PCS 3296W Trimming Potentiometer 200R 500R 1K 2K 5K 10K 20K 50K 3296 Potentiometers Variable Resistor

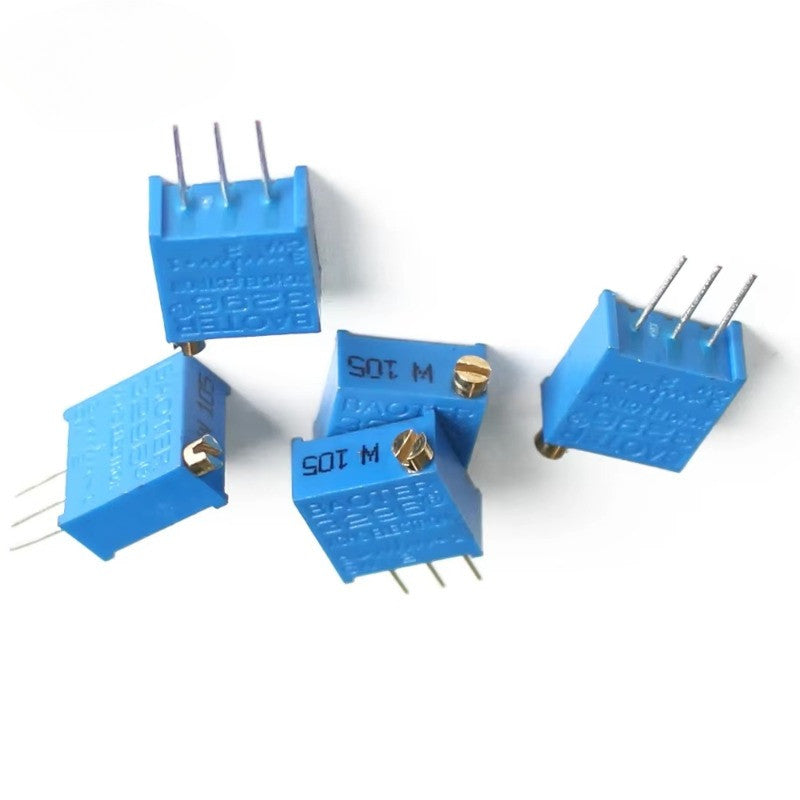

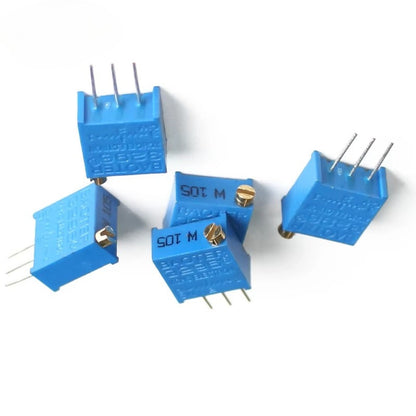

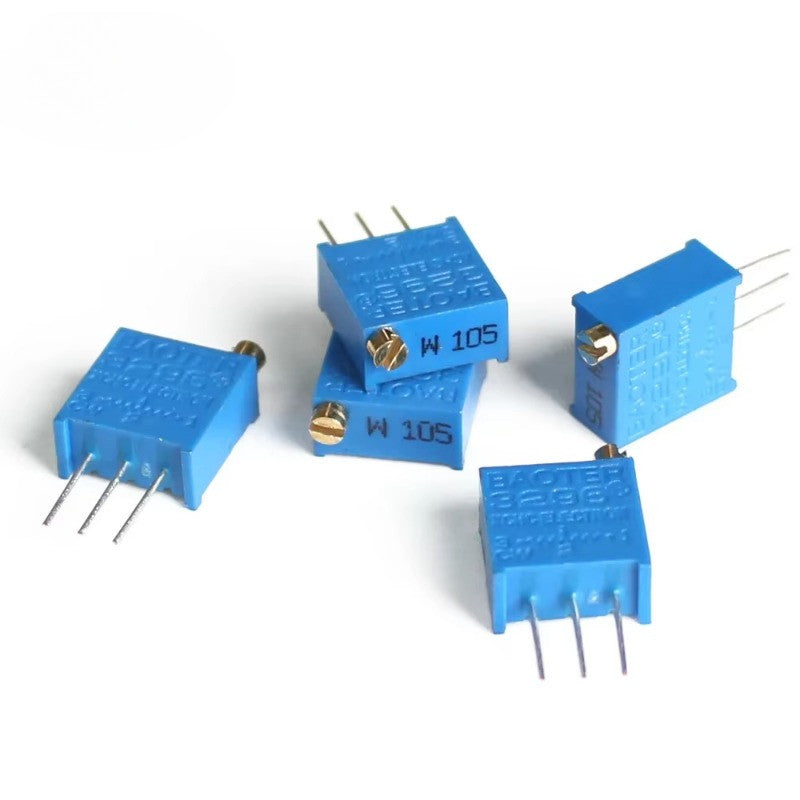

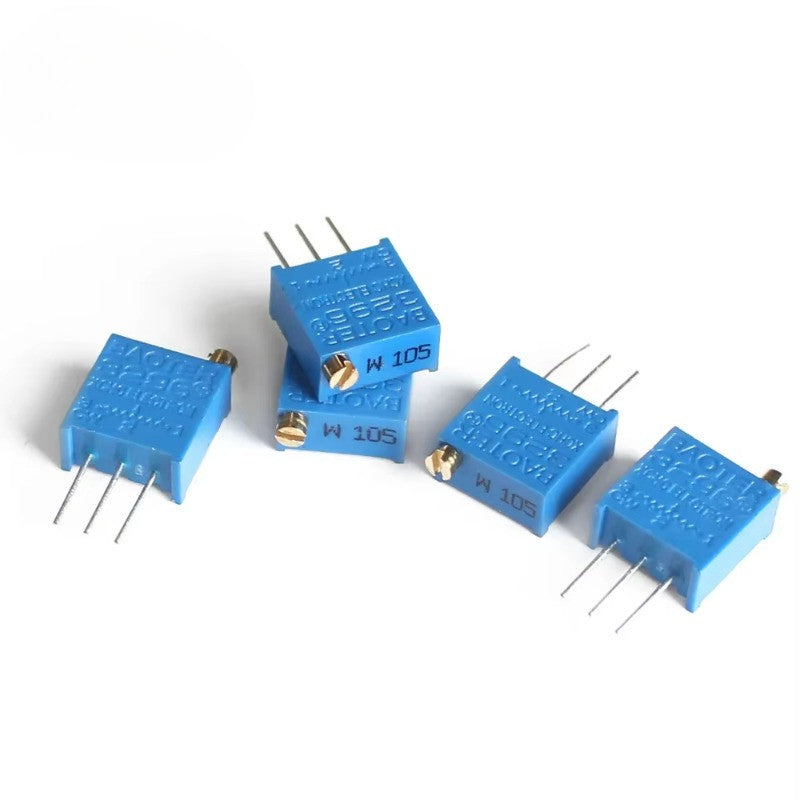

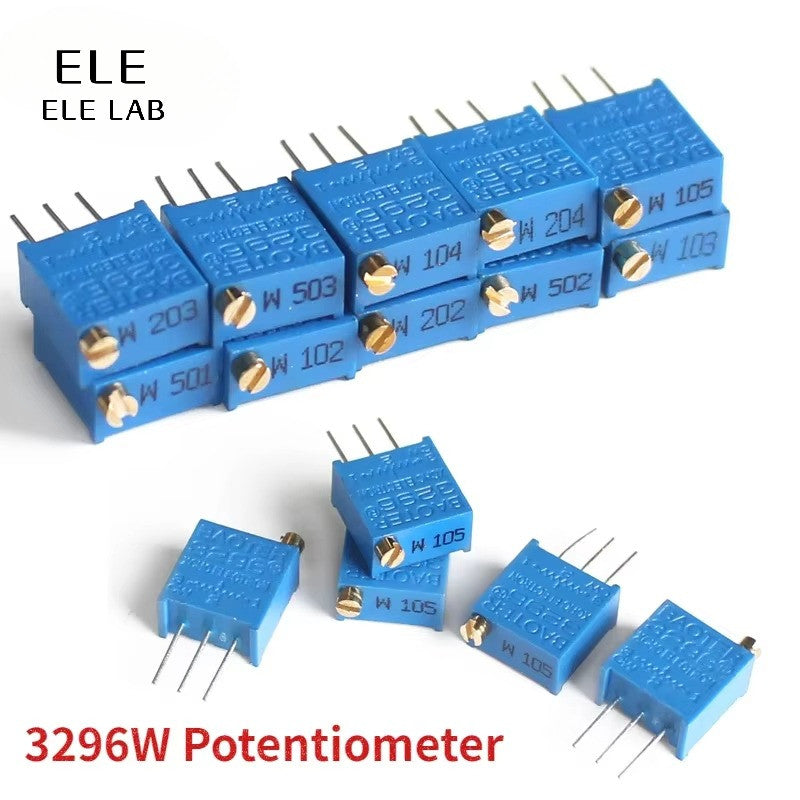

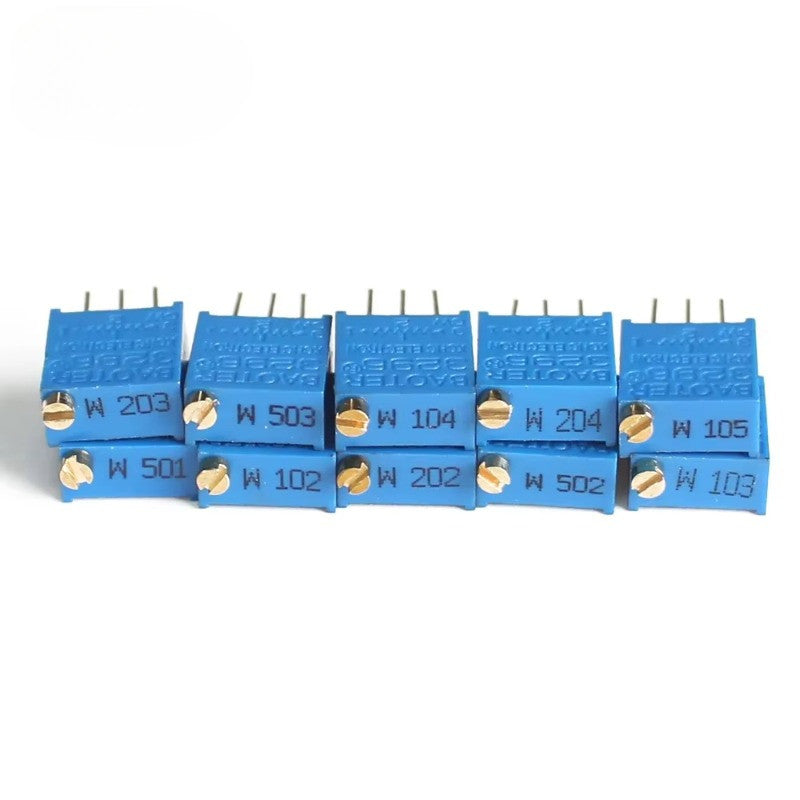

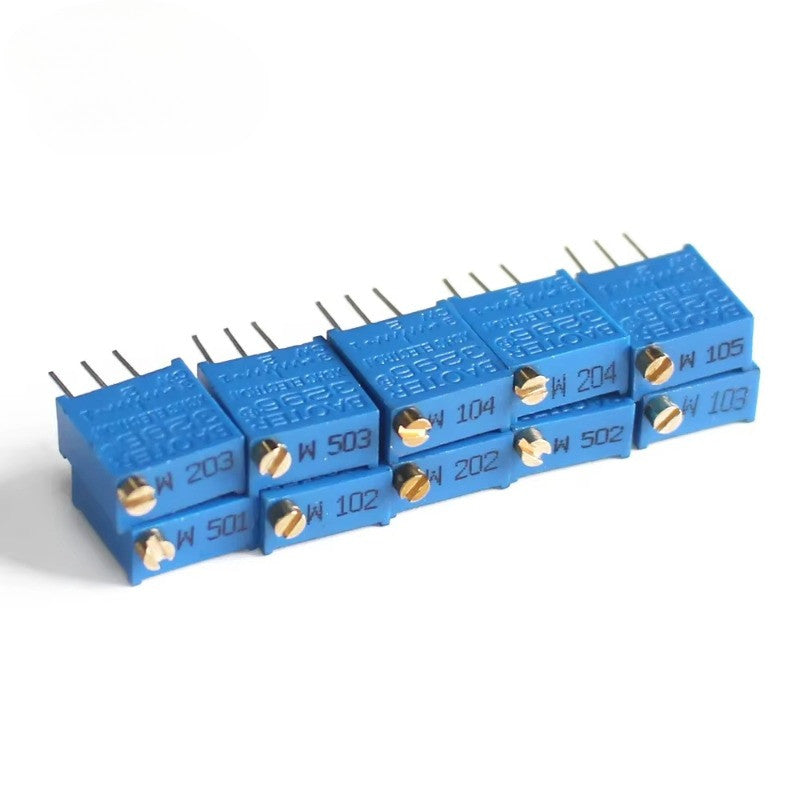

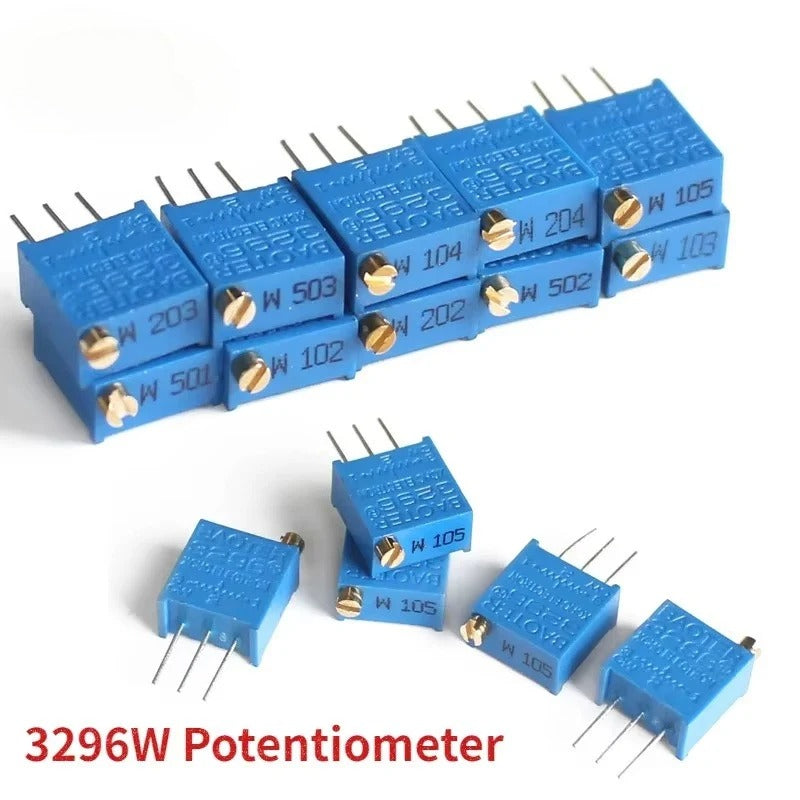

Name: 3296W
Parameters:
Resistance series: 1EC63 E3 series is preferred, and 1 significant digit is 1, 2, 5
Permissible deviation of resistance: ±10% TCR≤±250x10-6/°C
Resistor limit voltage: 315V (DC or AC RMS)
Moving contact limit current: 100mA
Withstand voltage (AC peak voltage with frequency of 40~60Hz)
Normal atmospheric pressure: 640V
Low voltage 8.5KPa (85mbar): 450V
Climate category: 55/125/104
Total mechanical travel: 28±2 laps
Stability Level: 10%
Starting torque: ≤35mN.m
Product application:
1. Used as a voltage divider
A potentiometer is a continuously adjustable resistor whose moving contacts slide across the resistor body when adjusting the rotary or sliding handle of the potentiometer. At this time, an output voltage that is related to the applied voltage of the potentiometer and the angle or stroke of the movable arm can be obtained at the output end of the potentiometer.
2. Used as a rheostat
When the potentiometer is used as a varistor, it should be connected to both ends so that a smooth and continuous change of resistance value can be obtained within the travel range of the potentiometer.
3. Used as current controller
When a potentiometer is used as a current controller, one of the selected current outputs must be a sliding contact leadout.
4. Widely used in electrical appliances, audio equipment, communications, medical facilities, security products, UPS power supply, video recorder, MP3, VCD machine, telephone and other equipment.
Name: 3296W
Parameters:
Resistance series: 1EC63 E3 series is preferred, and 1 significant digit is 1, 2, 5
Permissible deviation of resistance: ±10% TCR≤±250x10-6/°C
Resistor limit voltage: 315V (DC or AC RMS)
Moving contact limit current: 100mA
Withstand voltage (AC peak voltage with frequency of 40~60Hz)
Normal atmospheric pressure: 640V
Low voltage 8.5KPa (85mbar): 450V
Climate category: 55/125/104
Total mechanical travel: 28±2 laps
Stability Level: 10%
Starting torque: ≤35mN.m
Product application:
1. Used as a voltage divider
A potentiometer is a continuously adjustable resistor whose moving contacts slide across the resistor body when adjusting the rotary or sliding handle of the potentiometer. At this time, an output voltage that is related to the applied voltage of the potentiometer and the angle or stroke of the movable arm can be obtained at the output end of the potentiometer.
2. Used as a rheostat
When the potentiometer is used as a varistor, it should be connected to both ends so that a smooth and continuous change of resistance value can be obtained within the travel range of the potentiometer.
3. Used as current controller
When a potentiometer is used as a current controller, one of the selected current outputs must be a sliding contact leadout.
4. Widely used in electrical appliances, audio equipment, communications, medical facilities, security products, UPS power supply, video recorder, MP3, VCD machine, telephone and other equipment.
