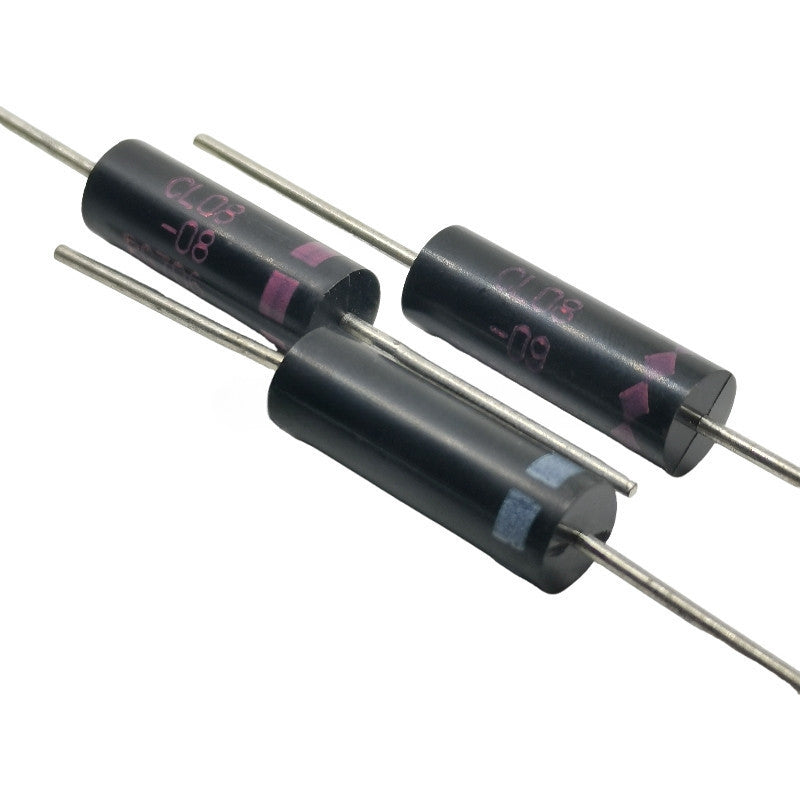

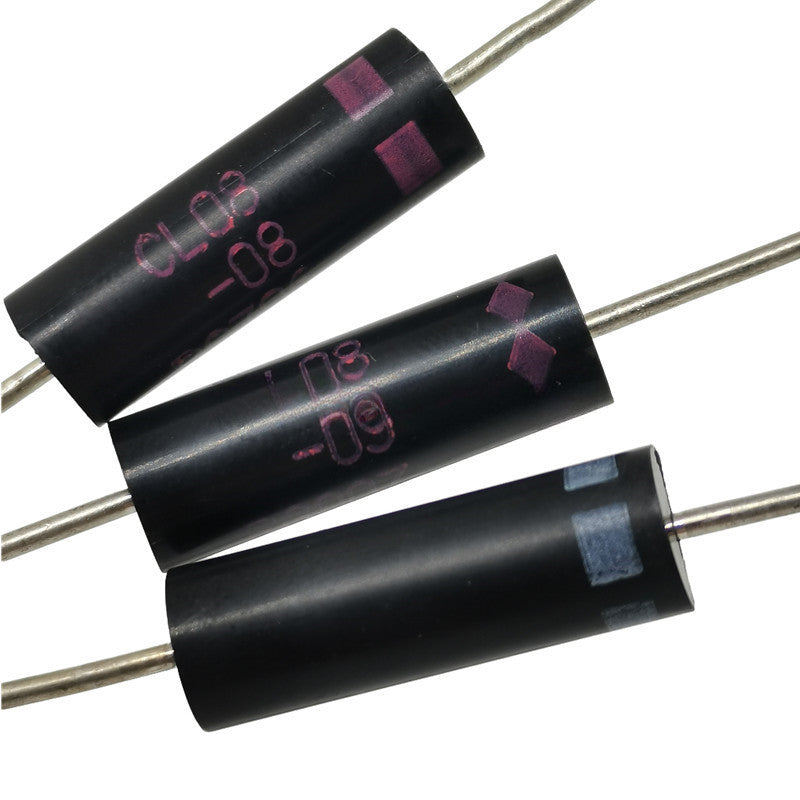

CL08 High Voltage Diodes CL08-08 CL08-09 CL08-10 350mA Microwave Oven Inverter Diode
The CL08 Series High Voltage Diodes (CL08-08, CL08-09, CL08-10) are precision-engineered rectifier diodes designed for high-voltage, high-frequency applications in microwave oven inverters and industrial power systems. With a 350mA forward current rating and exceptional surge current tolerance, these diodes ensure reliable performance in demanding environments requiring fast switching and robust voltage rectification.

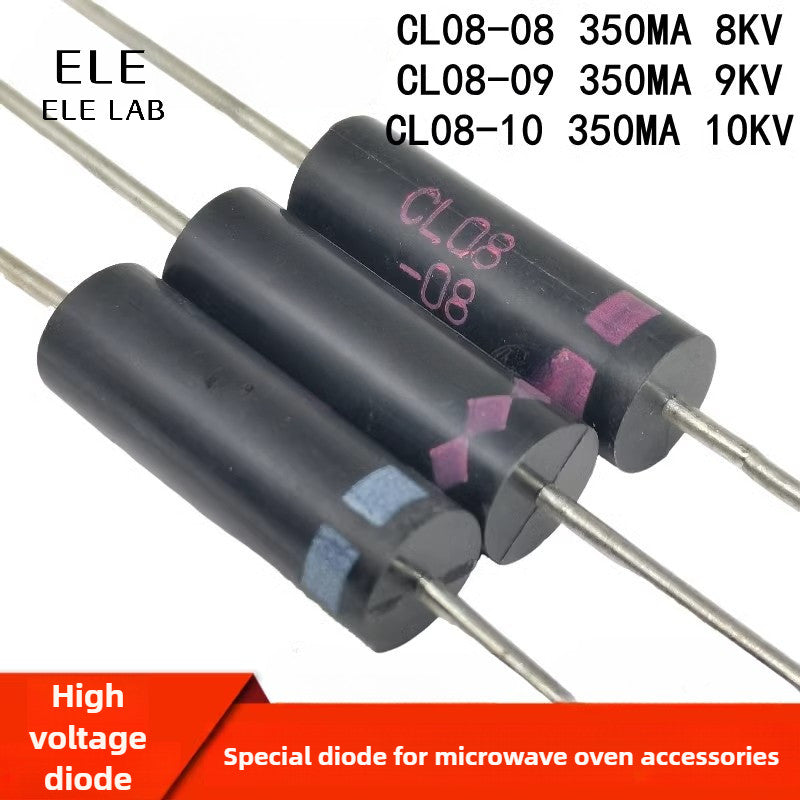

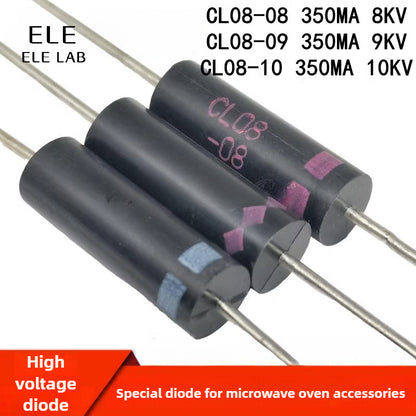

CL08-08: 8kV Peak Reverse Voltage (VRM).
CL08-09: 9kV Peak Reverse Voltage (VRM).
CL08-10: 10kV Peak Reverse Voltage (VRM).
Applications:
Microwave Oven Inverters: High-voltage rectification in inverter power modules.
Industrial Power Supplies: Switching mode power supplies (SMPS), UPS systems.
Medical Equipment: X-ray generators, laser power modules.
Renewable Energy: Solar inverter circuits and wind turbine converters.
