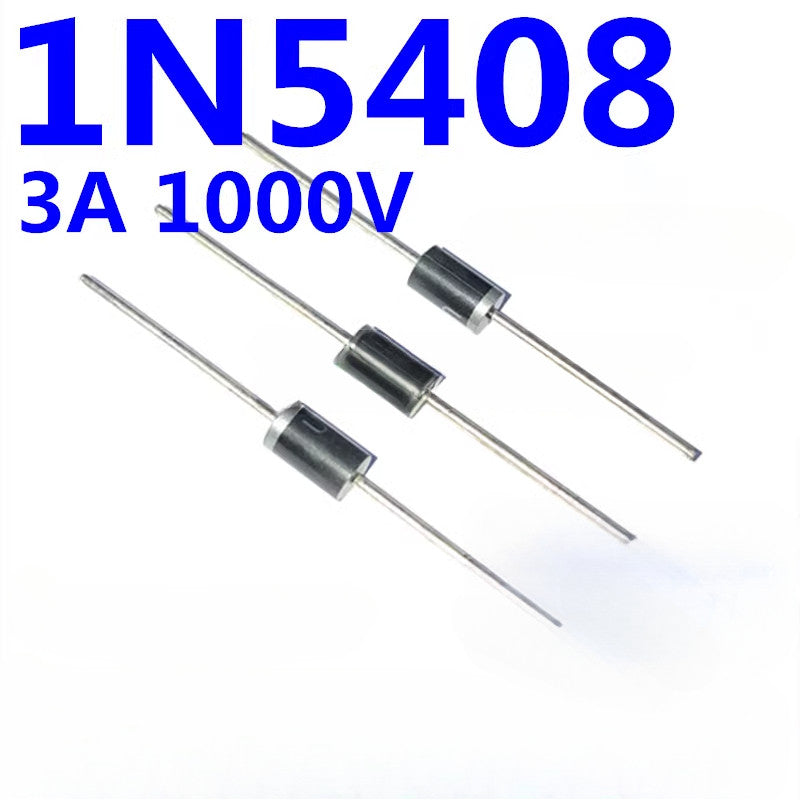

1N5408 IN5408 Axial Rectifier Diode 3A 1000V (DO-27 Package) - High Power Through-Hole Diode
Product Overview
The 1N5408 / IN5408 Axial Rectifier Diode is a heavy-duty, through-hole component designed for high-current rectification in AC/DC power circuits. With a robust 3A forward current and 1000V peak reverse voltage rating, this diode is ideal for demanding applications requiring reliable performance under high voltage and power conditions. Housed in a durable DO-27 package, it serves as a direct replacement for legacy designs or new industrial projects.
Key Features
High Power Handling: Supports 3A continuous forward current and 1000V reverse voltage (VRRM), perfect for rectification in power supplies and converters.
Low Forward Voltage Drop: 1V typical at 3A, minimizing energy loss and heat generation.
Durable Construction: Axial-lead DO-27 package ensures mechanical stability and easy PCB mounting for through-hole designs.
Wide Temperature Range: Operates from -65°C to +175°C, suitable for industrial and automotive environments.
Reverse Recovery Time: Optimized for general-purpose rectification in 50/60Hz line-frequency applications.
Applications
AC/DC bridge rectifiers (e.g., power adapters, battery chargers).
Voltage doubling circuits and transformer-based power supplies.
Industrial equipment, motor drives, and automotive electronics.
Surge protection and freewheeling in inductive loads.
